If you are designing a robust structure with wood, understanding the basics of vertical supports and horizontal frameworks is crucial. These systems rely on strong pillars to bear weight, ensuring stability over time. Knowing how to properly arrange these elements will help distribute loads evenly across the building.
When planning your layout, it’s important to decide on the appropriate spacing between uprights, which must align with the load-bearing capacity of the horizontal elements. The key to success is balancing the weight distribution across the framework, which reduces unnecessary stress on individual supports.
Maximizing efficiency involves choosing materials that are not only durable but also lightweight enough to ease construction. Wood, when properly treated, offers an excellent combination of flexibility and strength. Additionally, incorporating diagonal braces or cross supports can further enhance overall structural integrity.
Detailed planning should include clear measurements and proper reinforcement methods for ensuring the long-term resilience of the framework. Carefully consider the dimensions of each part and how it contributes to the overall load management to avoid potential weaknesses in your build.
Efficient Structural Design for Vertical and Horizontal Support Systems
For optimal load distribution, the vertical supports should be positioned evenly across the structure, typically no more than 8-10 feet apart. This ensures even weight transfer from the horizontal elements down to the foundation.
- Ensure the vertical elements are made of durable material, such as treated wood, steel, or concrete, depending on the overall weight load.
- The horizontal elements must span across the vertical supports with enough clearance to prevent sagging under pressure.
- Incorporate bracing between vertical supports to increase stability and prevent lateral shifting, especially in regions with high winds or seismic activity.
Use cross-sectional dimensions based on the span distance to guarantee the integrity of the overall framework. For instance, for a span of 10 feet, use a minimum thickness of 6 inches for horizontal supports, while a 12-foot span requires at least 8 inches.
- Consider using engineered lumber for enhanced strength, especially for longer spans.
- For additional safety, the top of the vertical supports should feature a cap or plate to evenly distribute weight across the horizontal spans.
Alignment is critical–ensure that all elements are level and square to avoid structural issues during the assembly process.

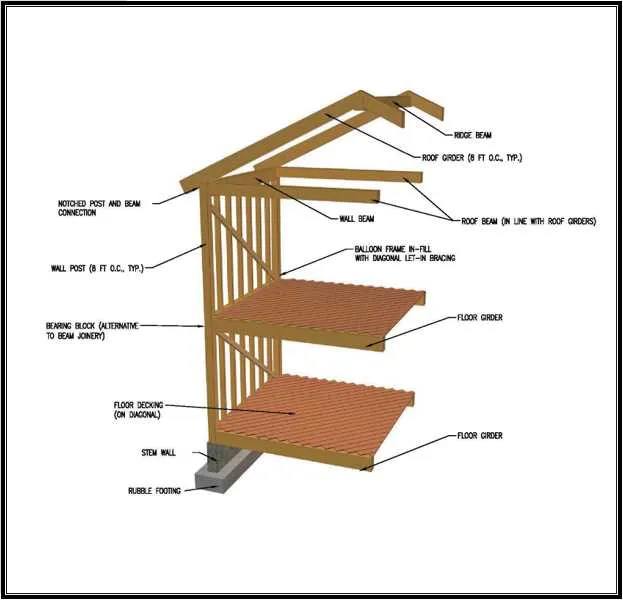

Understanding the Load-Bearing Roles of Vertical Supports and Horizontal Members
The vertical supports carry the weight of the roof and upper levels, transferring these loads downward to the foundation. They must be designed to withstand compression forces without buckling. When selecting materials, ensure they have sufficient strength to bear the load imposed by the upper structures. Reinforced timber, steel, or concrete are common choices for this role.
The horizontal members serve as the framework that distributes the weight across the space, often designed to handle bending forces. They span from one vertical element to another, transferring the load from the roof or floor above to the vertical supports below. It is critical to calculate the span correctly; longer distances require stronger materials or additional reinforcement to prevent sagging or failure.
In structural systems, the coordination between the two is vital. The alignment and spacing of vertical supports must correspond to the strength and placement of horizontal members. An incorrectly placed horizontal support could lead to uneven load distribution, causing stress concentrations that may weaken the entire structure. Ensure that load calculations take both types of components into account to avoid failures in either part.
Materials for horizontal members should be chosen based on their ability to resist bending while maintaining stability. Steel offers high strength-to-weight ratio, while wood can provide natural flexibility, though it requires proper treatment to avoid weaknesses such as rot or warping. Always consider environmental factors, including moisture levels and temperature variations, when selecting materials.

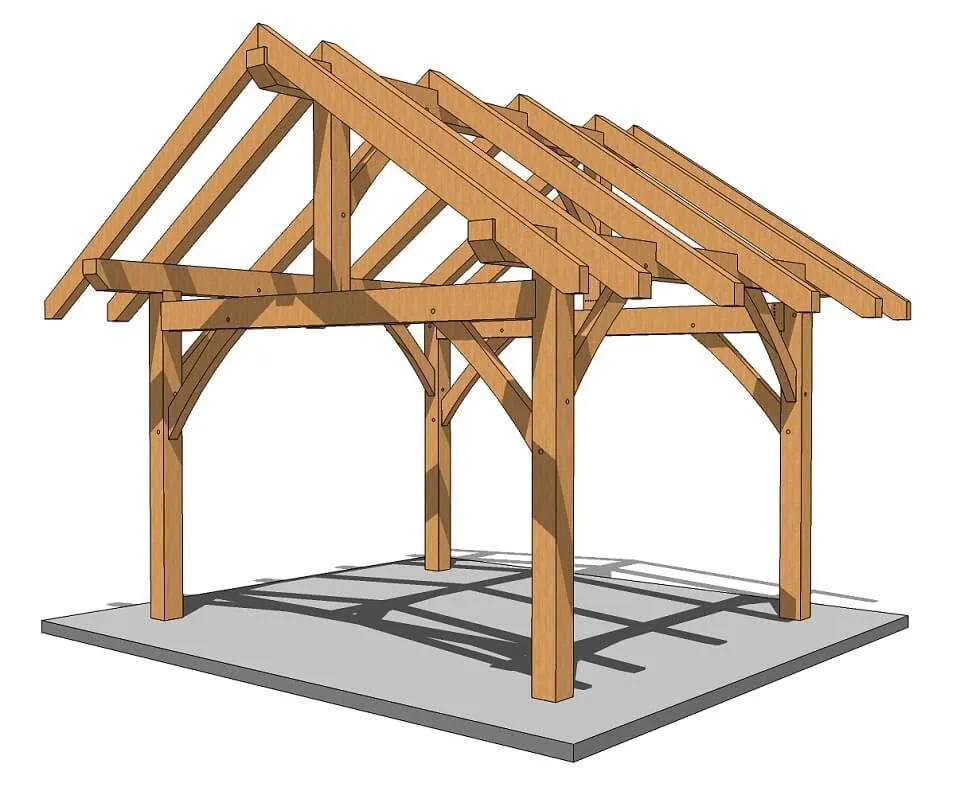

In larger structures, additional elements like cross-bracing or diagonal ties are often introduced to improve stability, preventing shifting or buckling under load. These supplementary components help distribute forces more evenly across the entire framework, preventing localized stress and ensuring long-term structural integrity.
Key Steps in Designing a Frame Structure
Begin by assessing the site’s soil conditions and environmental factors. This will determine the load-bearing capacity and material choices. Next, choose suitable vertical supports and horizontal members to ensure proper weight distribution across the entire frame. Prioritize the alignment of columns, ensuring they align with the building’s overall design and functional requirements.
Incorporate precise measurements for the foundation to provide a stable base. Use engineering calculations to ensure the strength of connections between vertical supports and horizontal elements. Factor in wind load, snow load, and seismic forces when deciding on the dimensions and materials for the main supports.
Ensure the spacing between supports is optimized for structural integrity while maintaining the flexibility for architectural design. The dimensions of the horizontal elements should align with the load-bearing capacity and span requirements. Reinforce key joints and connections to prevent structural failures.
Review the design with a structural engineer to validate the calculations and ensure compliance with local building codes. Once the design is finalized, create detailed plans that include exact measurements, material specifications, and step-by-step instructions for assembly.
Common Mistakes to Avoid When Building with Vertical Supports and Horizontal Elements
Incorrect sizing of vertical supports is a frequent error. Ensure that the dimensions match the load-bearing requirements for both the structure and the materials used. Oversized posts can add unnecessary weight, while undersized ones may fail under stress.
Improper alignment of horizontal elements is another critical issue. All horizontal supports must be perfectly level to maintain balance and prevent shifting. Use a level tool throughout the installation process to check alignment at every step.

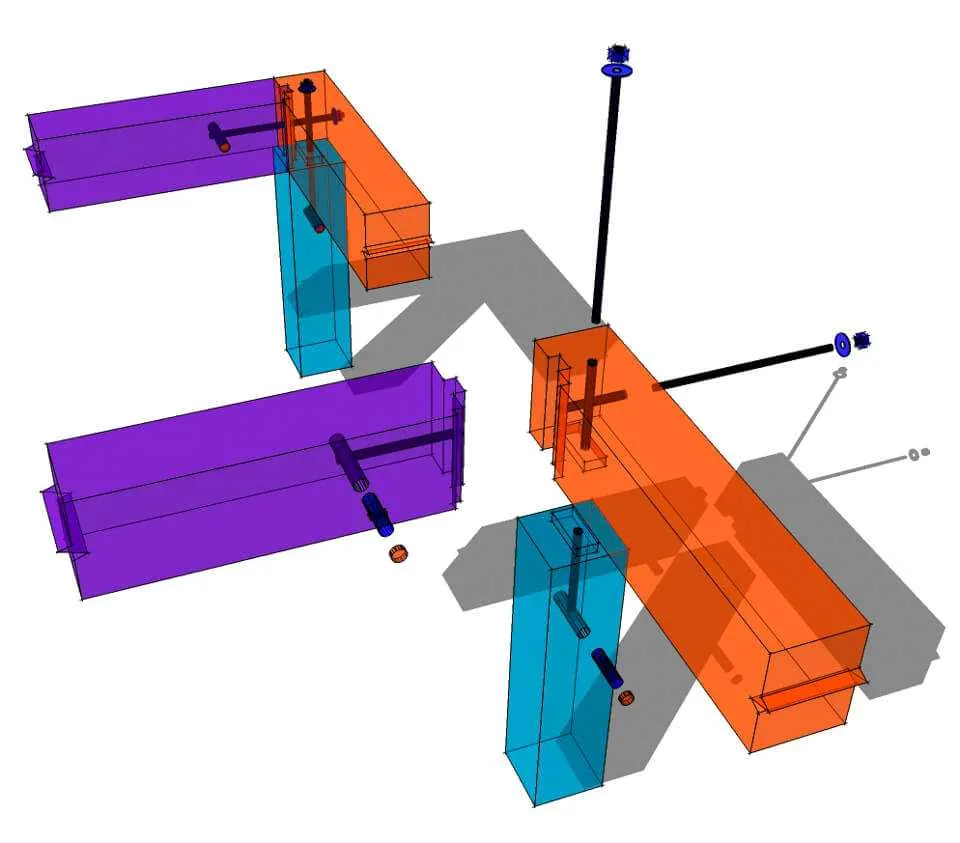

Neglecting adequate connections between the vertical and horizontal members can lead to instability. Use high-quality fasteners and reinforcement to secure these parts, ensuring a rigid frame that resists movement over time.
Inadequate spacing between supports is another common problem. Follow design specifications for distances between vertical elements, as uneven gaps can compromise strength and lead to uneven weight distribution.
Ignoring environmental conditions during material selection is also problematic. Certain climates may require specific types of wood or metal, which can withstand moisture, temperature fluctuations, or pest damage better than others.
Underestimating the importance of foundation work can result in a structure that shifts or settles unevenly. A solid, level foundation is essential to prevent long-term instability and ensure the overall safety of the building.
Finally, overlooking the importance of regular inspection can lead to unnoticed wear or damage. Schedule periodic checks to identify early signs of stress or movement, and make repairs before they escalate into larger issues.
