For proper tension and optimal performance of the accessory drive on the 5.7-liter V8 engine, follow the precise layout to ensure all pulleys and components align correctly. Misalignment or incorrect installation can lead to premature wear or failure of the drive system.
Key points to note: The path incorporates the alternator, power steering pump, water pump, and air conditioning compressor. Each pulley position must be respected to maintain correct tension across the continuous loop. Use a tensioner tool to apply proper pressure and avoid slippage.
Attention to detail during installation guarantees longevity and prevents common issues such as squealing noises or overheating due to poor accessory engagement. Always verify the routing against manufacturer specifications before final tightening.

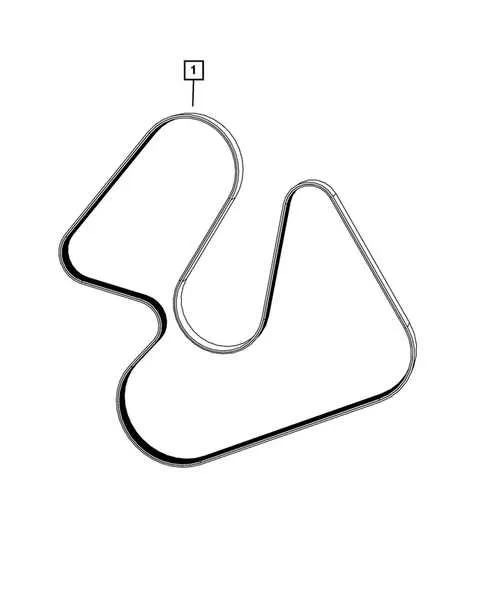

Engine Accessory Drive Routing for 5.7L V8
For proper installation of the multi-rib drive on the 5.7L V8 engine, follow this layout to ensure correct tension and alignment:
- Begin at the crankshaft pulley at the bottom center of the engine.
- Route upward to the water pump pulley.
- Continue around the alternator pulley on the driver’s side.
- Loop over the power steering pump pulley.
- Pass under the idler pulley to maintain tension.
- Wrap around the air conditioning compressor pulley, if equipped.
- Finish by returning to the crankshaft pulley, ensuring the tensioner applies adequate pressure to avoid slippage.
Key points to verify during installation:
- Check the rib alignment in each groove to prevent premature wear.
- Inspect tensioner pulley condition and spring tension for optimal pressure.
- Ensure no contact with moving components or sharp edges along the path.
- Replace any worn idlers or pulleys before fitting the new drive loop.
Following this specific routing guarantees proper function of engine accessories and prolongs component life.
How to Identify Each Pulley in the 5.7 Hemi Serpentine Belt Routing
Start by locating the crankshaft pulley, which is the largest and lowest positioned wheel driving the entire system. Adjacent to it, find the alternator pulley–usually smaller and near the top front of the engine. The power steering pump pulley sits on the driver’s side, often identifiable by its smooth surface and connection to the hydraulic lines.
The tensioner pulley is mounted on a spring-loaded arm, typically near the front center, and can be recognized by its ability to move to maintain proper tension. The idler pulley, usually a smooth, free-spinning wheel, serves as a guide and is positioned close to the tensioner but does not connect to any accessories.
The water pump pulley is typically behind the fan assembly and has a distinct position near the center of the setup. It can be identified by tracing coolant hoses connected to it. The air conditioning compressor pulley is generally found on the passenger side and is connected to the AC lines.
Use a flashlight to clearly see each wheel and follow the path of the wrapping component carefully. Marking each pulley on a sketch or taking a photo before disassembly helps in correct reinstallation. Consulting the engine service manual for exact pulley sizes and locations provides additional precision.
Step-by-Step Process to Replace the Drive Pulley Loop on a 5.7 HEMI Engine
Begin by disconnecting the negative terminal of the battery to prevent accidental electrical shorts. Locate the tensioner pulley and use a suitable wrench or ratchet to rotate it, relieving pressure on the loop system.
Carefully slide off the worn loop from the pulleys, noting the routing path for reinstallation. If uncertain, refer to the engine’s specific routing guide or take a photo before removal.
Inspect all associated pulleys and the tensioner for wear or damage, such as glazing, cracks, or misalignment. Replace any defective components to ensure optimal performance.
Position the new drive loop around the crankshaft pulley first, then continue routing it over the alternator, water pump, power steering pump, and air conditioning compressor pulleys. Leave the tensioner pulley for last to make installation easier.
Apply pressure again on the tensioner pulley to allow the new loop to slip fully into place, ensuring it sits correctly in the pulley grooves without twisting or slack.
Double-check the alignment of the entire loop assembly and confirm there is no excessive slack or binding. Rotate the engine manually using a breaker bar on the crankshaft bolt to verify smooth operation before reconnecting the battery.
Troubleshooting Common Issues Related to Pulley Alignment in 5.7 V8 Engines
First, inspect the routing of the drive loop to ensure it follows the exact path recommended by the manufacturer. Misrouting leads to premature wear and slippage. Verify that all pulleys are properly seated and not wobbling, which can cause misalignment and noise.
Check the tensioner mechanism for correct spring tension and smooth operation. A weak or stuck tensioner results in insufficient tension, causing the loop to slip or derail. Replace tensioners showing signs of corrosion or loss of tension.
Examine idler wheels for damage or wear, as deteriorated surfaces reduce grip and affect the alignment of the entire system. Replace any idlers with cracked or glazed surfaces.
Use a straightedge or laser tool across pulley faces to detect any deviation from a flat plane. Even small angular differences can accelerate wear and cause tracking issues.
Ensure engine mounts are intact and secure, since excessive engine movement alters alignment under load, causing the drive system to skip or squeal.
Contaminants such as oil or coolant on contact surfaces reduce friction and promote slippage; thoroughly clean all rotating parts before reassembly.
After addressing physical components, run the engine and listen for abnormal noises like chirping or squeaking, which indicate residual misalignment or tension problems. Recheck the system and adjust as necessary.
