If you’re setting up your heating system, it’s crucial to correctly connect the control system to ensure optimal performance. The wiring from the control panel to the heating unit must be accurate to avoid any malfunction or inefficiency. First, always verify that the power is turned off before working with electrical components to prevent any risk of shock or damage.
Red wire typically powers the system, connecting directly to the main energy supply. This wire is essential for maintaining a steady flow of power to the unit’s central board. The green wire is commonly linked to the fan, allowing you to control air circulation separately from the heating element. If your system includes cooling, you’ll find a yellow wire that connects to the air conditioning function.
For the heating operation, white wire plays a pivotal role, signaling the system to initiate heat when the temperature dips below your preset level. Make sure to connect it securely to the heating control terminals. In systems with more complex setups, there may be additional wires that regulate auxiliary heating or specific zones of your home.
When connecting the system, ensure that all wires are properly matched to their respective terminals. Avoid mixing up the components to prevent operational errors. If you’re uncertain about any steps, consulting a professional can save you time and effort, ensuring a safe and efficient setup.
Proper Connection of Heating Control System
To ensure the correct functioning of your heating unit, follow this detailed guide on how to establish proper connections between the control panel and heating system components.

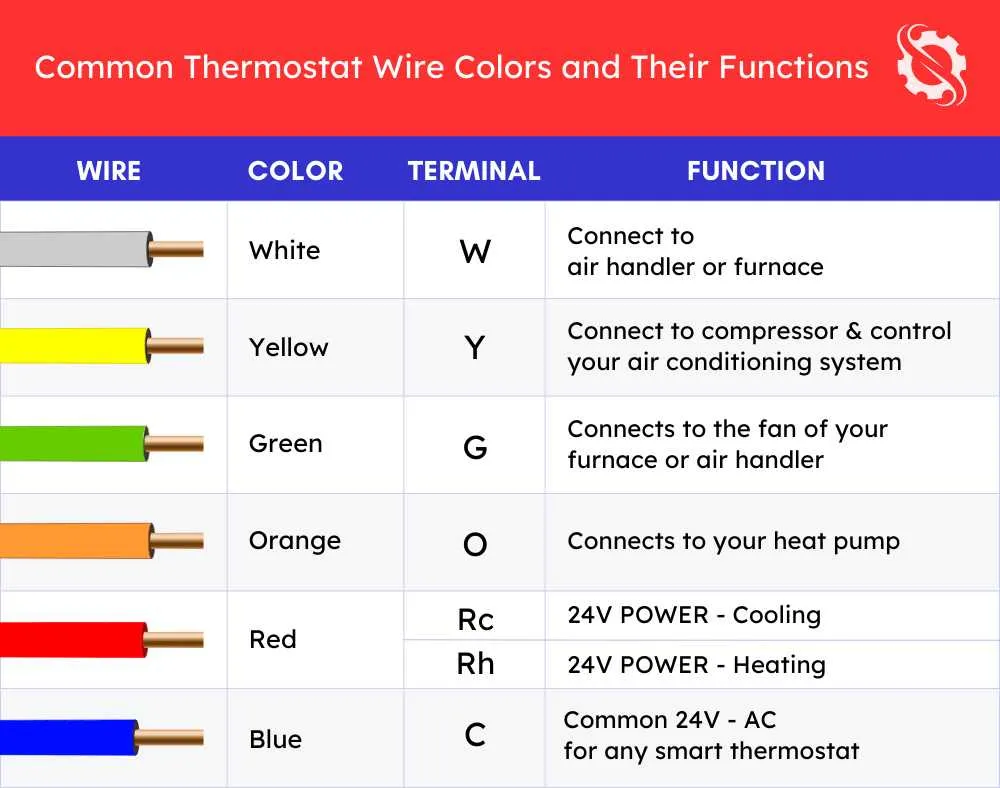

- Red wire (R or RC): This wire supplies power from the transformer to the control unit. Ensure it’s securely connected to the designated terminal.
- White wire (W): Connects to the heating element’s control. This wire should trigger the heating process when the temperature drops below the set point.
- Yellow wire (Y): Directs the cooling system. If your unit has a cooling function, this wire will control its activation based on temperature settings.
- Green wire (G): Used for controlling the fan. It activates the blower once the temperature reaches a certain threshold, ensuring consistent air circulation.
- C-wire (Common wire): Provides a return path for the power, enabling continuous operation of the control unit. Make sure it’s connected to the common terminal.
- Blue or Black wire (C or B): Used for advanced systems requiring an additional control option. This wire may be necessary for specific models, so check manufacturer guidelines.
Before you start, turn off the power supply to avoid any electrical hazards. Verify each wire color and label to ensure it aligns with the unit’s manual. Cross-check the connections after installation and test for proper operation to guarantee everything works as expected.
If you encounter issues, consider using a multimeter to test for voltage on the terminals. This can help confirm the presence of power at critical points, ensuring your system functions efficiently.
Understanding the Heating Control Connections
Ensure proper identification of the terminals when connecting your heating control unit. The most common terminals are marked with letters such as R, C, Y, W, and G, which correspond to different functions. Miswiring these can cause malfunction or failure of the heating system.
R terminal (Power) typically connects to the power source, providing 24V to the control unit. The C terminal provides the return path for the power. It’s crucial that these two are linked correctly to avoid any power-related issues.
W terminal controls the heating mode. It activates the heating system when the temperature drops below the set level. Make sure this is securely connected to avoid inconsistent heating performance.
Y terminal connects to the cooling system, if applicable. In a combined heating and cooling system, ensure the Y wire is linked properly to trigger cooling when needed.
G terminal is used for the fan. This should be connected to activate the fan during heating or cooling cycles. If your setup doesn’t use a fan, this wire can be left unconnected.
Double-check all connections before testing. A loose connection can result in incomplete heating operation, delays, or system failure.
How to Connect Your Heater Control System
1. Turn off the power to the system to avoid any risk of electric shock.
2. Locate the terminal block on the control panel of your heating unit. This is where the wires from the thermostat will connect.
3. Strip about half an inch of insulation from each wire coming from the wall control device.
4. Connect the wire for heating (usually red) to the “R” terminal on the heating unit. This provides the power for the system to operate.
5. Attach the common wire (typically white or blue) to the “C” terminal. This ensures a return path for the electricity and proper function of the system.
6. If you have a separate wire for cooling, connect it to the “Y” terminal on the unit. If not, skip this step.
7. For heat control, connect the wire to the “W” terminal. This allows the unit to activate the heating cycle when needed.
8. Double-check each connection to ensure they are secure and free from contact with other terminals or metal surfaces.
9. Once all connections are made, turn the power back on and test the operation by adjusting the wall control. Ensure the unit heats up as expected.
10. If everything works, replace any covers or panels you removed during the installation process and secure the control panel in place.
Common Electrical Issues and Troubleshooting for Heating Systems
If your heating system is malfunctioning, one of the most common causes is poor electrical connections. First, check for any loose or corroded terminals. Loose connections can cause inconsistent performance, preventing proper heat generation. Ensure that all wires are securely attached to their respective components.
Another issue to address is faulty connections between the control board and the ignition module. If you notice intermittent failure to start, inspect these links for wear or damage. Replacing any worn connectors should fix the problem. Ensure that the voltage supply is consistent, as fluctuations can cause short circuits or system shutdowns.
Look for signs of burned-out components, such as a faulty transformer or malfunctioning relay. These parts are prone to failure due to overloading. If you suspect a burned-out part, check the system’s fuse to rule out any blown fuses that may interrupt the flow of electricity.
Verify that the power supply to the system is stable and uninterrupted. Sometimes, electrical surges or power outages can cause components to reset or stop functioning. You may need to reset the system’s control board or replace damaged components like capacitors if they are no longer working efficiently.
Lastly, check the ground connection. A poor ground can lead to erratic behavior in the system, affecting the overall performance. Tighten any loose grounding connections to prevent further electrical issues.
