Before setting off on a road trip in your mobile home, ensure that your plumbing infrastructure is functioning optimally. Understanding the layout of the pipes, pumps, and valves is crucial for maintaining efficiency and avoiding unnecessary malfunctions. Proper installation of each component guarantees that you’ll have reliable access to fresh water and effective waste management, even when you’re off the grid.
Start by familiarizing yourself with the key components that make up the overall plumbing framework. These include the freshwater tank, holding tanks, faucets, and connections to your water heater. Each of these plays a vital role in ensuring that your experience on the road remains comfortable, with hot showers, clean drinking water, and seamless drainage.
Freshwater supply typically comes from an onboard reservoir, which is pressurized using an onboard pump to ensure a consistent flow throughout. If you plan to stay in remote areas, consider adding a secondary pump or filter for enhanced water quality. Additionally, inspect the wastewater collection system regularly to avoid clogs and backups, which can quickly turn into inconvenient issues during your travels.
Before departure, test all connections and valves to ensure there’s no leakage and that every faucet delivers water at the desired pressure. Check that your drainage lines are free from blockages, and the outflow into your waste tank is unobstructed. This simple maintenance step can save hours of frustration and keep your mobile living environment in top condition.
Key Components of RV Plumbing Setup
Ensure proper functionality of your vehicle’s plumbing with these essential components:
- Freshwater Tank: Stores clean liquid, typically located beneath the floor. Monitor its capacity for long trips to avoid shortages.
- Shower and Sink Fixtures: Essential for comfort. Regular maintenance helps prevent blockages.
- Pump: Draws liquid from the storage reservoir to feed the fixtures. Check its power and pressure regularly.
- Drainage Pipes: Remove used fluid from sinks, showers, and toilets. Inspect regularly for clogs.
- Waste Holding Tank: Collects waste. Ensure it’s properly sealed to avoid leaks.
- Heater: Provides hot fluid for showers and washing. Check its settings and function to ensure a steady supply.
All these components must be correctly connected to work seamlessly, with clear labels for easy identification and maintenance.
Regular inspection and maintenance of each part is necessary to avoid unexpected issues during travel.
How to Read and Understand the Plumbing Layout of an RV Water Setup

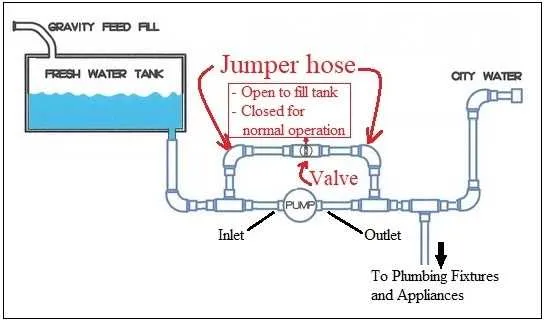

Start by identifying the main components: the fresh tank, the pump, and the lines that distribute fluids. Trace the flow from the tank to the pump, then to the various fixtures such as the sink, shower, and toilet. This will help you understand how liquid moves throughout the rig and where potential blockages or leaks might occur.
Fresh Tank: The source of the potable liquid, usually located beneath the rig. It connects to the pump, which pressurizes the plumbing network.
Pump: Essential for pushing the fluid through the pipes. It is often powered by the vehicle’s battery, and its location can vary–either near the fresh tank or close to the fixtures. Make sure to locate the switch to activate or deactivate it.
Distribution Pipes: These are typically made of PEX, CPVC, or flexible hose. Pay attention to how they are routed from the pump to various endpoints. These lines are often color-coded for cold and hot. The cold water line is generally blue, while the hot one is red. Verify connections at each fixture.
Fixtures: Faucets, showers, toilets, and other points where liquid exits. Follow the lines from the pump to each fixture to understand how fluid is delivered. Check for shut-off valves, which can isolate each unit if needed for maintenance.
Drainage: Waste lines lead from the fixtures to the holding tank. Understand the flow path to ensure proper venting and avoid clogs. The drain typically has a vent valve to prevent pressure buildup.

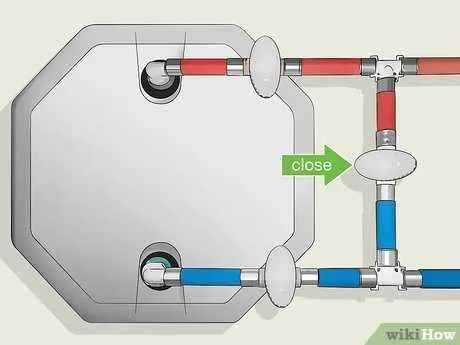

Finally, locate the bypass valve. It allows you to drain the system or isolate certain sections when winterizing or servicing. Ensure you understand each valve’s function to avoid confusion during setup or repair.
Key Components of an RV Freshwater System and Their Functions
Freshwater tank: The primary reservoir that holds the clean liquid for daily use. It is typically located in a compartment underneath or within the vehicle’s body, offering a convenient and space-efficient solution for storage. Always check for cracks or leaks to ensure it is sealed properly.
Shore hookup valve: A critical connection point when parked at campsites with available plumbing. This valve allows you to connect an external hose to draw in external supplies, bypassing the onboard reservoir if necessary.
Pressure regulator: Ensures that the pressure from external sources doesn’t exceed the capacity of your onboard plumbing. This prevents potential damage to pumps and pipes, maintaining the longevity of your setup.
Water pump: Responsible for moving liquid from the onboard reservoir through the plumbing to faucets and appliances. Check the pump’s function regularly, as it can wear over time or become clogged, especially with mineral deposits from hard liquid.
Faucets and fixtures: Installed in the kitchen, bathroom, and other areas requiring access to clean liquid. Ensure that each faucet is connected properly and that seals are intact to avoid leaks and waste.
Hot water heater: Supplies heated fluid for comfort. It operates by heating the liquid through electric or propane-based methods. Regular maintenance, including flushing, prevents buildup and prolongs its efficiency.
Drain valve: Critical for emptying both the primary and secondary containers to avoid stagnation or contamination. Use it regularly to keep everything running smoothly.
Filters: Installed to purify incoming resources. Regularly replacing or cleaning them ensures that the water remains safe for consumption and usage, avoiding contaminants that could damage the plumbing or appliances.
Common Troubleshooting Tips for RV Plumbing Issues
Check for leaks around pipes and connections. Tighten any loose fittings and replace damaged hoses. Leaks can significantly reduce flow and pressure.
If the pressure is low, inspect the pump and filters. Clogged filters or malfunctioning pumps often cause inconsistent pressure. Clean or replace filters and test the pump.
In case of no flow, ensure the water supply valve is open. Sometimes, valves can get stuck or mistakenly turned off. Check the entire valve assembly and operate it manually if needed.
If the pump runs but no fluid is coming out, check for airlocks. To clear them, open all faucets, then turn the pump on and off several times. This will help expel any trapped air.
For unusual noises, such as rattling or buzzing, inspect the pump for loose components or debris. Tighten any loose parts and clean the pump to prevent noise interference.
If freezing occurs in cold weather, insulate exposed pipes. Frozen pipes restrict or block flow, so ensure proper insulation around vulnerable areas to maintain normal operation.
Consider testing the pressure switch. If it’s faulty, the pump may not turn on or off correctly. Replace it if needed to restore proper pressure control.
Ensure the water tank is properly vented. Poor venting can cause issues like slow filling or air pockets. Check the vent valve for obstructions and clean it regularly.
If there’s a bad smell, flush the entire system. Stale water in the pipes can accumulate bacteria or mold. Run a disinfectant solution through all faucets to clean the pipes.
