Ensure all piping is securely laid out before pouring the concrete floor to avoid costly repairs. Carefully plan the routing of water and drain pipes, as improper installation can lead to significant structural damage or leaks in the future. Utilize flexible and durable materials, such as PVC or PEX, for long-term reliability.
Before finalizing the layout, mark the precise positions of all fixtures, vents, and access points for future maintenance. Strategically position vents to avoid air traps, which can lead to pressure issues and inefficiencies in the system. Proper slope for drain pipes is essential–maintain a minimum grade of 1/8 inch per foot for smooth water flow and to prevent blockages.
Incorporate access panels for critical junctions to allow easy repairs or inspections without disturbing the floor structure. A well-constructed foundation around the plumbing network is necessary to minimize the risk of damage during settling. If necessary, consult a professional to verify your plan meets local codes and regulations.

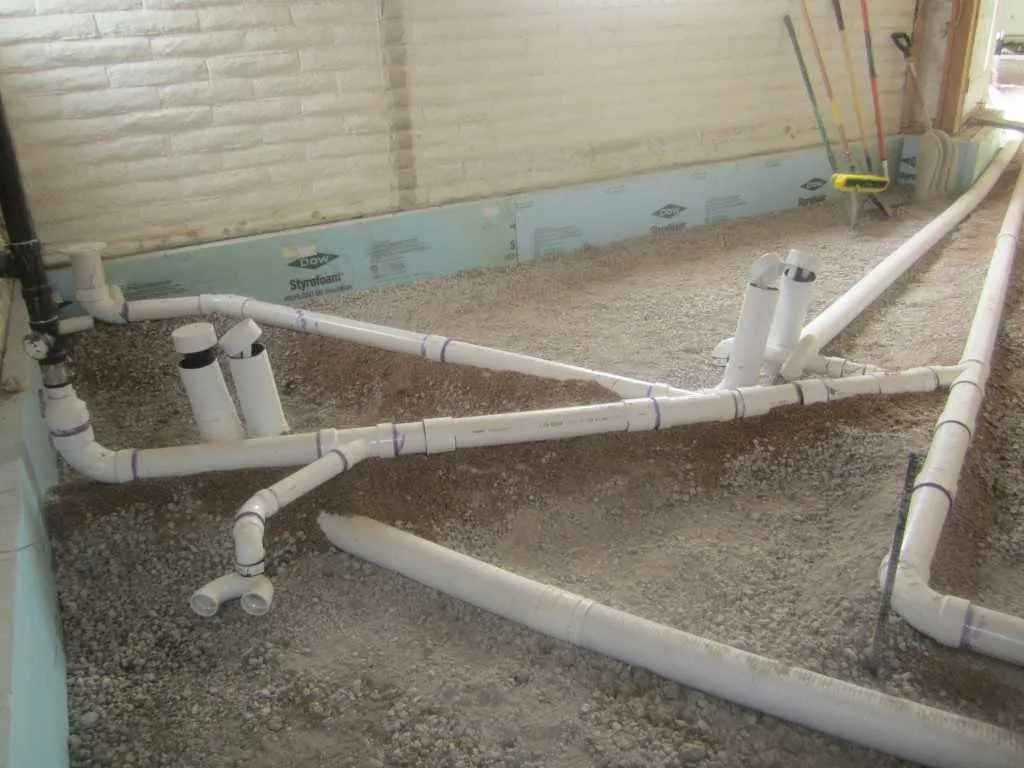

Pipe Layout Below Concrete Flooring
Ensure proper pipe insulation when installing beneath the foundation to prevent freezing and ensure long-term efficiency. Use foam or rubber sleeves around water lines in colder climates to protect them from temperature fluctuations.
Plan for drainage slope at a minimum of 1/4 inch per foot to promote proper flow and avoid stagnant water. A consistent decline is crucial for preventing blockages and allowing gravity to assist in waste removal.
Minimize sharp bends in the pipes. Opt for gradual curves to reduce strain on the material, which can lead to leaks over time. Utilize elbows or flexible connectors when necessary to create smooth transitions.
Test for leaks before pouring concrete. Once pipes are laid, conduct a pressure test to ensure there are no leaks, as repairs after the foundation is poured are difficult and costly.
Use durable materials like PVC or PEX, which are resistant to corrosion and capable of handling both pressure and temperature changes. These materials have proven to last longer compared to traditional metals when placed beneath the floor.
Install access points at critical junctions for future maintenance. Create inspection hatches or access pipes near key connections to facilitate repairs without needing to dig through the slab.
Follow local codes for pipe placement and size specifications. Municipal building codes will dictate the depth and positioning of water and waste lines beneath structural concrete, and it is essential to adhere to these guidelines for safety and legal compliance.
Understanding the Components of Below-Floor Water Systems
The key elements of an underground pipe network for water and waste management consist of pipes, joints, fittings, and supports. Each part plays a critical role in ensuring proper flow and longevity. The pipes used in these systems are typically made of materials like PVC, PEX, or copper, selected based on factors such as corrosion resistance and flexibility.
Water supply lines, which are designed for pressurized flow, should be made from materials that can withstand internal pressure and external stress. For waste disposal, larger diameter pipes with proper slope are required to prevent blockages and ensure gravity-assisted movement of waste. Proper insulation around pipes helps protect against freezing in colder climates.
Connections between pipes are secured with specialized fittings, such as elbows, tees, and couplings. These components must be carefully chosen to match pipe diameter and material. Sealing agents or gaskets are used to prevent leaks at these joints. Furthermore, flexible joints can help accommodate shifts in the ground or foundation.
Support systems, including hangers and brackets, keep the network securely in place, preventing movement that could lead to cracks or leaks. In regions with seismic activity or soil shifts, additional reinforcement may be required.
Maintenance involves regular inspection for any signs of leaks, wear, or blockages, and ensuring that all components are securely fastened. Proper installation and periodic checks are essential to avoid costly repairs or disruptions to the building’s infrastructure.
Step-by-Step Guide to Installing Pipes Below the Concrete Floor
Start by gathering all necessary materials: PVC or PEX pipes, fittings, a pipe cutter, a measuring tape, a pipe bender (if needed), and a sealant for pipe joints. Make sure you have a detailed blueprint of the layout to avoid any mistakes during installation.
- Mark the Pipe Path – Use a chalk line or string to mark the exact position where the pipes will run. Make sure the lines are straight and properly aligned with your layout.
- Dig the Trench – Excavate the ground to the appropriate depth based on the size of the pipes. Ensure a smooth trench with a slight slope (1/8” per foot) to facilitate proper drainage if needed.
- Install a Sand Bed – Lay down a 2-3 inch layer of sand at the bottom of the trench. This will protect the pipes from sharp rocks or debris that could cause damage over time.
- Cut and Fit the Pipes – Measure and cut the pipes according to the layout. Use the pipe bender to shape the pipes where necessary, ensuring no sharp bends that could obstruct water flow.
- Place the Pipes – Lay the pipes in the trench, following the marked path. Ensure they are evenly spaced and supported, avoiding direct contact with the ground to prevent potential damage.
- Connect the Pipes – Use the correct fittings to join the pipes. For PVC, apply primer and cement to each joint. For PEX, secure connections with crimp rings or push fittings, depending on the system type.
- Test the System – Before backfilling, perform a pressure test to check for any leaks. You can do this by capping the ends of the pipes and adding water or air under pressure.
- Backfill the Trench – Carefully cover the pipes with a layer of sand, followed by the excavated soil. Compact the soil in layers to avoid air pockets that could cause settling.
- Seal the Joints – Apply a sealant to any exposed joints or connections, ensuring a tight seal to prevent potential leaks in the future.
Double-check all connections and make sure the system is fully functional before finalizing the floor surface. Always follow local building codes and regulations for installation practices.
Common Issues and Solutions for Leaks in Piping Systems Below Concrete Floors
Identifying leaks early is crucial to preventing serious damage to your foundation and water bills. Detecting subtle signs like increased water usage, damp patches, or musty smells in floors can help you locate the problem quickly.
1. Corroded Pipes – Over time, metal pipes can corrode due to prolonged exposure to water and soil conditions. Solution: Replace corroded sections with modern, corrosion-resistant materials like CPVC or PEX. Use a pressure test to pinpoint the exact leak location.
2. Joint Failures – Weak joints or improper fittings can lead to small, unnoticed leaks that worsen over time. Solution: Tighten or replace faulty joints with compression fittings or use solvent-welded connections. Ensure proper alignment and secure connections during installation.
3. Cracked Pipes – Settling of the building or shifts in the soil can cause cracks in pipes. These cracks often lead to slow leaks that expand gradually. Solution: For minor cracks, pipe sleeves or epoxy repairs can be effective. Severe damage may require pipe replacement.
4. Shifting Soil – Shifting or settling soil beneath the concrete can cause stress on the piping system, resulting in pinhole leaks. Solution: Conduct a thorough assessment of soil conditions and consider regrading the landscape or stabilizing the soil before repairing or replacing damaged pipes.
5. Tree Root Intrusion – Roots from nearby trees can invade pipes, causing blockages or cracks. Solution: If roots are found, either cut them out and patch the affected area or replace the pipe with root-resistant material like Schedule 40 PVC. Regular root inspections can prevent future issues.
6. Inadequate Installation – Poor installation practices can lead to future leaks, especially if the pipes were improperly sloped or insufficiently supported. Solution: Always ensure pipes are installed by qualified professionals and that they meet the recommended codes and standards for your area.
7. Pipe Insulation – Pipes that are uninsulated may crack due to temperature changes or pressure surges. Solution: Insulate pipes running through colder sections to prevent freezing or use flexible materials that can handle temperature shifts.
8. Water Pressure – High water pressure can put excess strain on pipes, leading to ruptures and leaks. Solution: Install a pressure-reducing valve to maintain safe water pressure and reduce the likelihood of leaks.
