To ensure optimal engine performance, it’s crucial to understand the key elements of the cooling assembly. A clear visual representation can assist with identifying each element and understanding its function in maintaining temperature control. Accurate identification of each segment allows for more efficient troubleshooting and part replacement.
Identify the key components: Typically, a high-performance engine cooling system includes the core, hoses, tanks, fans, and supporting hardware. Each piece plays a vital role in maintaining the correct operating temperature by regulating the flow of coolant throughout the system. If any part fails, the entire assembly could be compromised, leading to potential overheating or inefficient operation.
Core Assembly: The central piece in the system, responsible for heat dissipation, connects to the engine block and circulates coolant fluid. This part must be inspected regularly for any blockages or corrosion, as even small issues can lead to overheating.
Supporting Hardware: Mounting brackets and screws hold everything together. Over time, these components may loosen or corrode, affecting the overall system’s stability. Always check the integrity of these parts to prevent leaks or misalignments that could disrupt the coolant flow.
To get a better grasp of how all the components come together, refer to an accurate schematic to visualize their interconnections and placements. This approach will enhance your ability to manage any maintenance or repairs efficiently.
Detailed Overview of Cooling System Components for ZR1 Model
Start by ensuring proper alignment of the fan assembly with the core. Incorrect positioning may cause overheating. The cooling unit consists of several essential elements: the core itself, the cooling fins, overflow tank, and multiple hoses. Each component plays a vital role in regulating engine temperature. The core should be checked for blockages or damage to ensure optimal fluid flow. Inspect the reservoir for cracks or leaks that could lead to fluid loss.
Pay attention to the fan blades; they must rotate without obstruction. If the fan motor shows signs of wear or malfunction, replace it immediately. The hoses should be checked for brittleness or kinks, as they are crucial for maintaining pressure and fluid movement. Ensure that the clamps are secure and the connections are tight to prevent leaks.
For efficient operation, inspect the thermal switch that controls fan activation. A faulty switch can lead to premature engine overheating. Finally, clean the fins on the core to maximize airflow, especially if you notice any build-up of debris or dirt. Maintaining these components will significantly extend the lifespan of the cooling system and prevent potential damage to the engine.

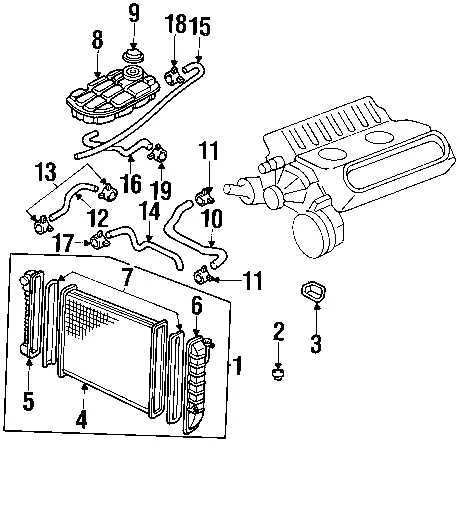

Identifying Key Components in the ZR1 Cooling System Assembly
To ensure optimal performance, focus on recognizing the main elements that constitute the assembly. The core structure includes the core unit, which serves as the heat exchange component, and the tanks that house fluid reservoirs. Pay close attention to the mounting brackets and fasteners securing the core unit to the frame, as they ensure stability and proper alignment.
The fan assembly is critical for controlling the airflow, and its condition can directly affect cooling efficiency. Be sure to inspect the motor and blades for any signs of wear or debris accumulation. Additionally, the hoses attached to the inlet and outlet should be examined for cracks or leaks that could impair fluid circulation.
Another vital section is the pressure cap, which regulates the internal pressure and prevents overheating. Ensure it is seated correctly and operates within the recommended pressure range to avoid coolant loss or engine damage. Lastly, check the drain valve for any buildup or obstruction that might hinder fluid release during maintenance procedures.
How to Replace or Repair Specific Components of the ZR1 Cooling System
If you’re dealing with issues in the cooling system, start by identifying the problem component–whether it’s the core, fan, or hoses. These are the most common culprits in the system breakdown.
To replace the core, first drain the fluid completely and disconnect all connections. Remove the mounting bolts carefully, then lift the core out. When installing the new core, ensure it aligns with the brackets and secure it with the appropriate torque. Reconnect all lines tightly to avoid leaks, and refill with the correct coolant mixture.
When repairing or replacing the cooling fan, disconnect the battery before starting. Locate the fan’s electrical connections and remove them, followed by the mounting bolts. Once removed, check the fan motor for any visible damage. If the motor is faulty, replace it with an OEM unit. Reinstall the fan carefully, ensuring the wiring connections are secure and the fan is properly aligned.
If the hoses are damaged or leaking, it’s best to replace them entirely. Cut the old hose off carefully, avoiding any damage to surrounding components. Install the new hose and make sure the clamps are positioned correctly to prevent movement. Tighten the clamps without overdoing it to avoid damaging the hose material.
For leaks at the connections, inspect the seals and O-rings for wear. If any seals are compromised, replace them with high-quality replacements that match the manufacturer’s specifications to ensure a proper seal and prevent further leaks.
Always check for proper fluid levels and air pockets after any replacement or repair. Run the system for a short period and check for leaks or abnormal sounds. Make sure the cooling system operates at the correct temperature and pressure before taking the car for a test drive.
Troubleshooting Common Issues with Zr1 Radiator Components
Check the coolant level first–low fluid often causes overheating and poor thermal regulation. Top off with a 50/50 mix of ethylene glycol and distilled water if needed.
- Clogged Cooling Fins: Inspect the heat exchange fins for dirt or debris buildup. Use compressed air to clear obstructions without bending the aluminum vanes.
- Leaking Seals: Examine junctions where the upper and lower chambers meet plastic tanks. Look for residue or white stains indicating slow leakage. Replace O-rings or gaskets showing wear.
- Thermostat Malfunction: If the engine runs cold or overheats irregularly, test the thermostat in boiling water. Replace if it fails to open between 180–195°F (82–90°C).
- Fan Relay Failure: When airflow seems insufficient at idle, test the electric fan relay using a multimeter. Replace if voltage does not switch correctly under load.
- Cracked Core Tubes: Pressure-test the coolant system up to 16 psi. If pressure drops, submerge the heat exchanger in water and look for bubbles escaping from microfractures.
Use only aluminum-safe cleaning agents when flushing the internal flow passages to prevent corrosion or erosion of internal channels.
