If you’re working on replacing or inspecting the engine drive components, it’s crucial to understand the exact routing pattern for the power transmission system. This layout ensures optimal operation and prevents potential failures caused by improper tension or misalignment.
Follow the specific routing path carefully to avoid wear or slippage. The tensioner and idler pulleys play a significant role in maintaining the correct tension on the system. If one of these parts is misaligned or damaged, the entire system could malfunction, leading to overheating or loss of power to key engine components.
Refer to the factory’s recommended component placement to guide you through the setup. Make sure to double-check the direction of rotation for each pulley. It’s essential that all elements are aligned precisely as indicated to ensure smooth performance and longevity of your engine’s systems.
Having an accurate reference for these components can save you time and effort, ensuring the engine operates efficiently without unnecessary interruptions or part failures. Always verify the condition of the tensioning system before reassembling to prevent future complications.

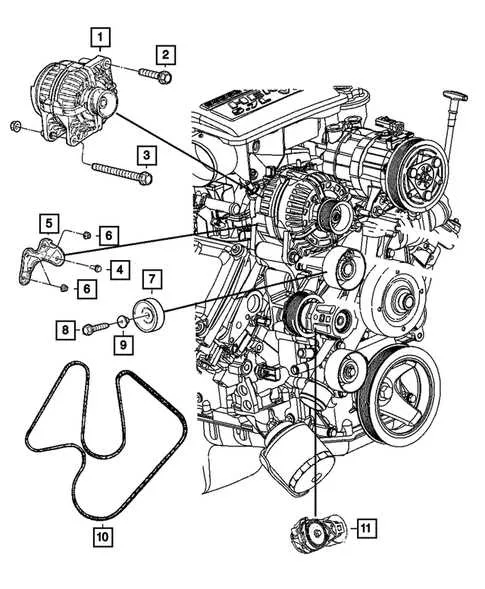

Serpentine Routing for 2007 Model
To ensure proper engine performance, always follow the precise routing path for the accessory drive system. For this model, the route begins from the crankshaft pulley, continuing through the tensioner, alternator, power steering pump, and air conditioning compressor, and loops back around the idler pulley. Pay close attention to the alignment of the components as improper installation can lead to excessive wear or failure.
Inspect the tensioner spring mechanism to ensure the correct amount of force is applied to the system. Over-tightening or loosening the spring could result in reduced efficiency or noise. Ensure that all pulleys are free of damage and that the surface is clean to avoid unnecessary friction. Replace the drive system if any part is worn or damaged.
Verify that the route of the drive system matches the configuration shown for your model year, as misrouted systems can lead to overheating or component failure. Double-check the alignment by rotating the crankshaft manually to ensure there are no obstructions and that the path remains clear.
How to Identify the Routing for the Drive Belt on a 2007 Dodge Caliber
Start by locating the tensioner pulley, which plays a crucial role in maintaining proper tension on the drive system. The path of the belt will loop over the main accessories, including the alternator, power steering pump, and air conditioning compressor. Ensure that the routing follows a clockwise direction around the tensioner, allowing it to tighten the drive system as the engine operates. Pay attention to the position of the crankshaft pulley at the bottom, as it serves as a starting point for the belt’s routing.
Refer to the manufacturer’s recommended belt configuration, typically found near the front of the engine compartment or in the owner’s manual. Confirm that the belt’s alignment follows the grooves of each pulley, ensuring it sits properly to prevent wear and misalignment. If you encounter any discrepancies or missing components, double-check the setup against a detailed schematic to guarantee all parts are correctly engaged.
Inspect the position of the air conditioning and power steering pump, as their pulleys are crucial in routing the belt through the right sequence. These components are often the source of misalignment issues if the belt isn’t threaded correctly. After setting the belt in place, rotate the engine manually to check for smooth operation and avoid any binding or friction.
Common Issues with Accessory Drive Belt and How to Fix Them
One of the most common problems with the accessory drive system is premature wear and tear. If you notice squealing sounds from the engine bay, it may indicate a worn or misaligned component in the system. The most frequent cause is a cracked or frayed component that’s no longer making proper contact with pulleys. This issue can lead to loss of power to essential components like the alternator and air conditioning compressor.
How to Fix It: Inspect the component for visible signs of damage such as cracks, splits, or excessive wear. If any part looks worn out, replace it immediately. Ensure the new component is properly aligned with all pulleys, as misalignment is a frequent cause of failure.
Another issue is the tensioner failing to maintain the right level of tension. A loose or tight component can cause slippage, which impacts the performance of connected systems. This can lead to overheating or charging issues if left unchecked.
How to Fix It: Check the tensioner for signs of wear or corrosion. A faulty tensioner should be replaced, as it cannot be fixed. When replacing, make sure the tension is set according to manufacturer specifications.
Sometimes, noise or squealing can stem from dirt or debris stuck between the drive components. This can cause friction and further damage over time if not addressed promptly.
How to Fix It: Clean the components carefully, removing any dirt, leaves, or grease buildup. Using a solvent that’s safe for engine components is recommended for cleaning.
If the system seems to be slipping despite no visible wear, check for misalignment or pulley issues. A misaligned pulley can cause uneven wear and stress on the entire system.
How to Fix It: Inspect all pulleys and the associated bearings. If they appear damaged, replace them to restore proper alignment and prevent future issues.

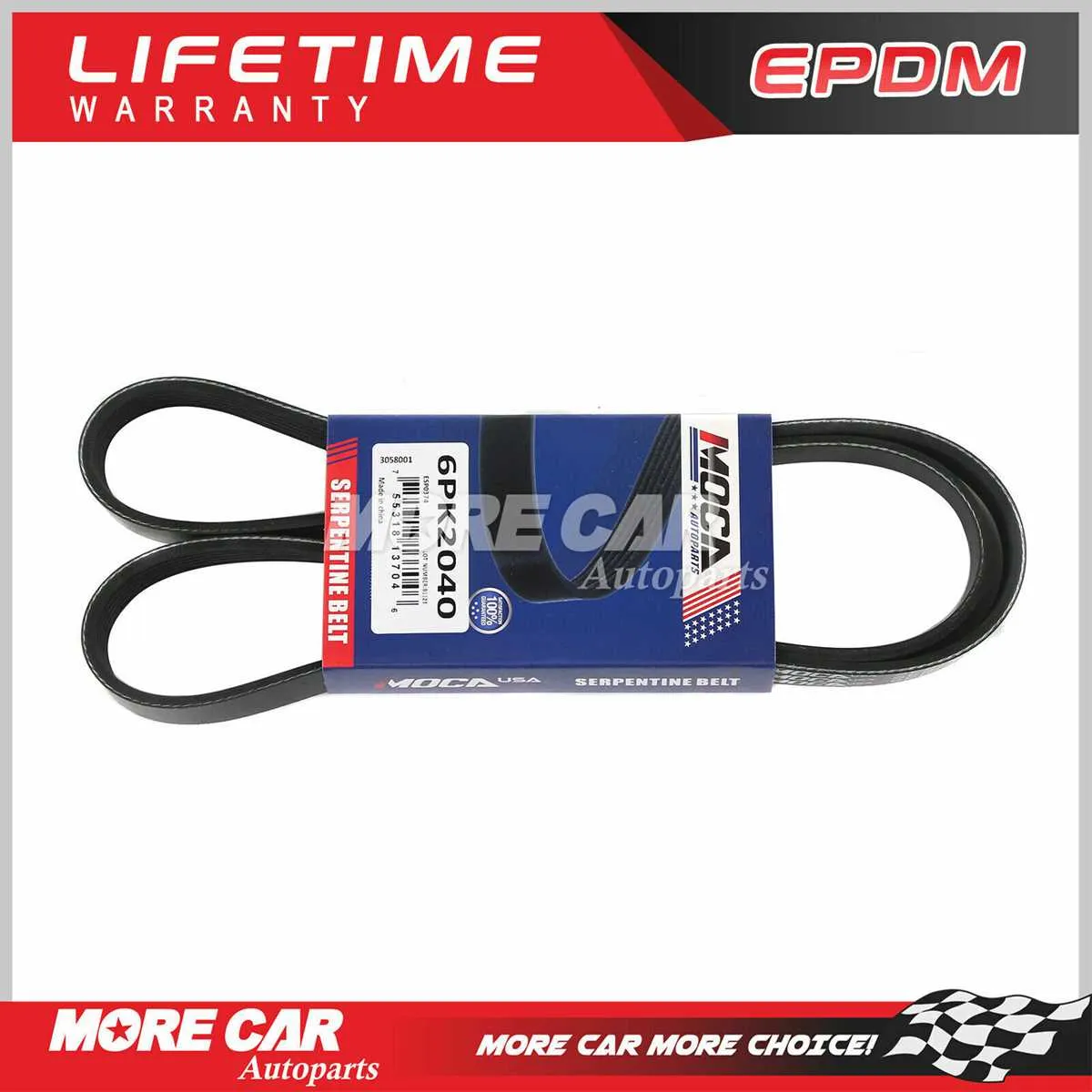

Step-by-Step Guide to Replacing the Serpentine Belt on 2007 Dodge Caliber
To replace the drive belt on your vehicle, follow these precise steps to ensure proper installation and functionality:
- Preparation: Park the car on a flat surface and engage the parking brake. Disconnect the negative terminal of the battery to avoid any electrical mishaps.
- Locate the Belt: Open the hood and locate the engine accessory components. You should see the long, rubber component running across the pulleys of the alternator, power steering pump, and air conditioning compressor.
- Release Tension: Use a ratchet or wrench on the tensioner pulley to relieve pressure from the belt. This will allow you to remove the belt from the pulleys. Be sure to note the direction of rotation for reinstallation.
- Remove the Old Belt: Carefully remove the belt from all pulleys, taking note of its routing. Keep the old belt as a reference or consult the factory service manual for the correct route.
- Inspect the Components: Before installing the new belt, check the pulleys for wear or damage. Ensure all components are functioning smoothly and free of debris.
- Install the New Belt: Begin routing the new belt over the pulleys, following the same path as the original. Ensure it fits securely in the grooves and on all pulleys.
- Apply Tension: Use the tensioner to apply pressure and tighten the new belt. Verify that it is centered and properly aligned with each pulley groove.
- Check for Proper Installation: Rotate the engine by hand or start it briefly to ensure the belt is running smoothly without any unusual noises or slack.
- Reconnect the Battery: Once you’re satisfied with the belt installation, reconnect the negative terminal of the battery. Start the engine and check for any abnormalities in the operation of your accessories.
With the new belt installed, you’re ready to hit the road. Regular maintenance and inspection will prolong the life of the new component.
