If you are experiencing issues with the electrical components of your car, locating the proper wiring connections is essential. Start by examining the central control area where power distribution occurs. This is crucial for identifying malfunctioning circuits or blown connections that might be affecting the functionality of your vehicle’s lights, power outlets, or other electrical systems.
Refer to the main panel for a quick solution. It contains an organized list of individual connections responsible for specific parts like headlights, radio, and internal sensors. Understanding the layout of these connections will help you identify which part needs attention without wasting time on irrelevant components.
Ensure you use the correct tools when inspecting or replacing faulty elements. A diagram of the internal power distribution system can be extremely useful, showing the position and function of each connection point. You should also keep track of each fuse’s amperage to avoid overloading circuits.
Electrical System Layout for 2008 Model
To effectively troubleshoot electrical issues, it’s crucial to know the specific location of relays, fuses, and circuits. Below is a guide to locating the main electrical components and their functions.
- Under the Hood: The primary relay assembly can be found near the engine compartment. This unit houses several critical connections for engine and exterior lighting systems.
- Interior Panel: The passenger side beneath the dashboard contains the internal relay and fuse unit. This panel manages circuits for air conditioning, infotainment, and power windows.
- Rear Area: Some models also feature an additional relay group located in the rear of the cabin, managing tail lights and rear window defogger systems.
Refer to the corresponding legend in the vehicle’s manual to confirm each component’s role. Below are the common fuse assignments:
- Engine System: 15A fuse – Controls ignition and fuel pump circuits.
- Interior Lighting: 10A fuse – Powers dashboard lights, door lights, and cabin illumination.
- Power Windows: 20A fuse – Governs the operation of the window motors.
- Air Conditioning: 30A fuse – Manages the electrical circuit for the AC compressor.
Always use fuses of the specified amperage when replacing. Incorrect fuses can lead to circuit damage or electrical failures.
Locating the Fuse Panel in a 2008 Honda CRV

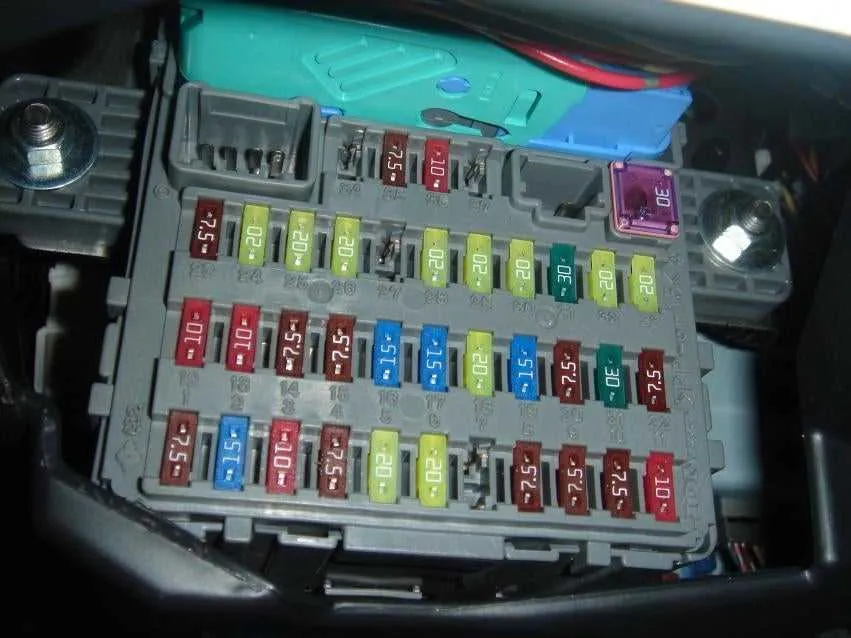

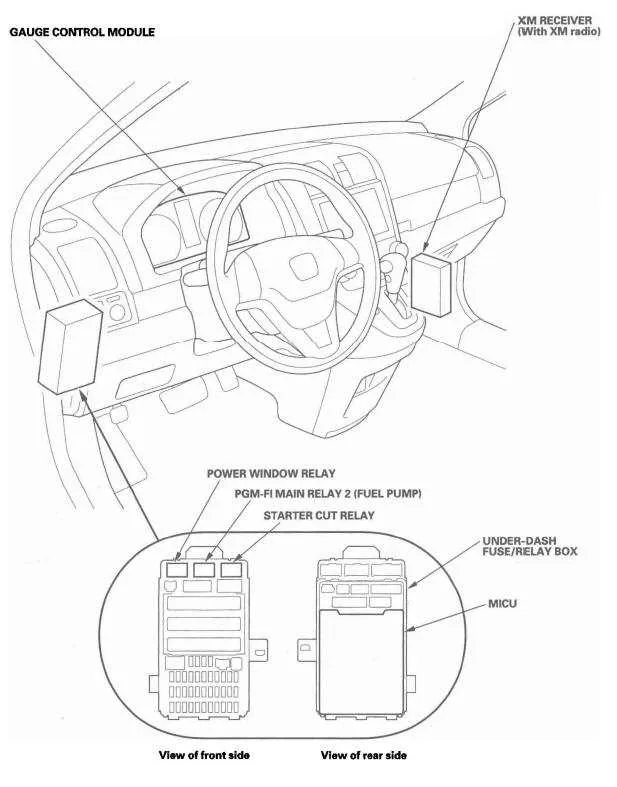

To locate the main electrical panel, check the driver’s side dashboard. Open the door and inspect the area around the left-side edge. There should be a small access cover that you can remove by pulling it off gently.
The second panel is in the engine compartment. Open the hood and look near the battery, on the passenger side. This panel is housed in a black plastic casing. Release the latches to access the internal components.
Ensure the vehicle is turned off before handling any electrical components to avoid risk of electrical shock or damage to the system. Always refer to the vehicle’s manual for exact placement and safety instructions for your particular model.
Identifying Circuit Protection Functions in the Engine Compartment
Begin by locating the relay and circuit protection components in the engine compartment. These modules manage essential systems such as the ignition, lighting, and cooling fan circuits. To identify their functions, start by inspecting the labeling on the cover or in the user manual. For example, the first row typically includes critical components like the fuel pump, horn, and main relay. Check the manufacturer-specific guide for detailed explanations on each relay’s role.
Next, pay attention to the color and amperage rating of each component. Components like the radiator fan often have higher amperage ratings (30A to 40A), while less power-hungry systems, like the turn signals, may require only 10A or 15A. This helps in determining the right component if any system stops functioning.
For more precise troubleshooting, use a multimeter to check for continuity across each relay or circuit protector. Lack of continuity indicates a blown component, requiring immediate replacement to restore functionality to systems like the air conditioning or headlights.
How to Replace Fuses in Your Vehicle
Begin by locating the panel containing the blown element, typically under the dashboard or near the engine compartment. Consult the vehicle’s manual for the exact location. Use a fuse puller or a pair of needle-nose pliers to carefully remove the damaged component.
Step 1: Identify the blown component by inspecting the wire inside; it should be broken or burnt. Double-check using a multimeter if necessary.
Step 2: Select a replacement with the exact same rating. The amperage of the new part should match the original to avoid electrical damage.
Step 3: Insert the replacement carefully into the same slot, ensuring it is securely positioned.
Step 4: Test the functionality of the system after replacement. If the issue persists, double-check for any underlying electrical faults that might cause repeated failures.
Always store spares of various ratings for future needs and never exceed the rated value when replacing any part.
