Start by identifying the horizontal panel tucked beneath the overhanging section of the roof. This element covers the underside of the eaves and helps in ventilating the attic space. Ensure it’s properly aligned with the framing and supported with vented inserts if airflow is required.
Next, examine the vertical trim that caps the roofline where the gutter is mounted. This piece conceals the ends of the rafters and shields them from moisture. Use rust-resistant fasteners and seal all joints to prevent water infiltration behind the gutter assembly.
Secure the junction where both features meet using appropriate flashing. Overlap materials to guide runoff effectively, avoiding exposure to bare wood. Regular inspection of this connection prevents rot and maintains structural integrity over time.
When planning repairs or installations, use detailed reference sketches to visualize cut angles, joint placement, and fastener positions. A precise visual guide helps in minimizing errors and ensuring each element fits tightly without gaps.
Soffit and Fascia Layout and Connection Guide
Start with the eave edge alignment: ensure the lower vented panel runs parallel to the exterior wall. Use a chalk line to mark the mounting line on the underside of the overhang for consistent placement. Keep the spacing uniform across all sections to prevent airflow disruption.
Mount the horizontal panels first. Secure them using corrosion-resistant nails driven into wooden lookouts. Leave a small expansion gap of 1/8 inch at each joint to account for temperature shifts. Avoid overdriving fasteners, which can cause deformation.
Next, install the vertical trim board that connects roofline edging to the covering below. Use pre-measured pieces cut at 90° or 45° depending on the roof pitch. Fasten with two nails per stud to avoid sagging or separation over time.
To seal the upper intersection, use a drip edge flashing under the shingles and over the vertical trim. Overlap joints by at least one inch and seal with exterior-grade silicone where needed to block water intrusion.
Check for plumb alignment at corners. Use a framing square to maintain clean junctions between vertical cladding and overhead enclosure. Reinforce corners with aluminum L-brackets if wind exposure is high.
For vented eave sections, choose perforated inserts spaced at regular intervals. Avoid blocking them with insulation or caulk. This promotes attic ventilation and reduces the risk of condensation buildup.

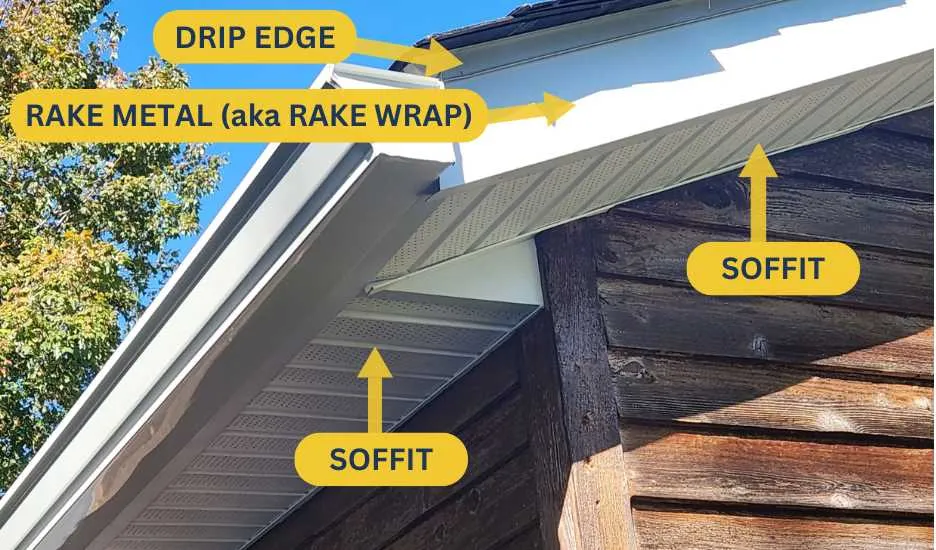

How to Identify Soffit and Fascia Components in a Diagram
Begin by locating the horizontal underside structure directly beneath the roof overhang–this element typically features vents and runs parallel to the ground. It often connects the outer wall to the lower edge of the roofline. Look for perforated panels or slatted surfaces designed to promote air circulation into the attic space.
Next, trace the vertical finishing board mounted at the end of the rafters. This upright trim runs along the roof edge, usually supporting the gutter system. It appears as a clean, flat board perpendicular to the vented underside and serves both a protective and aesthetic function.
To differentiate between the two, note that the vented section lies in a horizontal plane, while the upright face board aligns vertically and frames the exterior perimeter of the roofing system. Focus on material distinctions: the underside section may show small ventilation holes or mesh inserts, while the vertical board tends to be solid and smooth.
Confirm component alignment by checking roof eaves from a side cross-section: the enclosed base plane indicates the ventilation layer, while the forward-facing board caps the structural rafter ends. Each is distinct in orientation, purpose, and appearance.
Correct Placement of Vents and J-Channels on Soffit Panels
Install intake grilles evenly along the underside eaves to ensure consistent attic airflow. Focus on the following:
- Place ventilated sections between every third or fourth solid board if full-length ventilation is not used.
- Align air slots symmetrically to support balanced circulation from one end of the overhang to the other.
- Avoid blocking airflow paths with insulation or framing near the attic edge.
Position edge trim strips precisely to hold the panel edges firmly:
- Secure one track flush against the wall where the overhang begins, forming the inner boundary.
- Attach the opposite track along the outer horizontal trim beneath the roof slope.
- Ensure both guides are level to prevent sagging or misalignment during insertion of covering pieces.
For corners and terminations:
- Use pre-formed corner joints to maintain continuous support and clean appearance.
- Cut panels precisely to fit within edge moldings, allowing minor expansion gaps per manufacturer specs.
Joining Boards at Corners and Roof Edges
Use a tight miter joint at external corners for a clean, weather-resistant connection. Cut the trim pieces at 45-degree angles to ensure they fit flush without gaps. For internal corners, a butt joint reinforced with galvanized brackets or metal plates provides added strength.
Secure each board with corrosion-resistant fasteners placed every 12 to 16 inches along the length. Pre-drill holes to prevent splitting, especially when working with hardwood or composite materials. Apply exterior-grade sealant along seams to block moisture infiltration and prolong durability.
At roof edges, ensure the board overlaps any drip edge flashing by at least 1 inch to channel water away effectively. If the trim is thicker than the flashing, trim or shim as necessary to maintain a smooth transition. Use stainless steel nails to resist rust in exposed conditions.
For long runs, allow a 1/8 inch expansion gap between boards at joints to accommodate temperature changes and prevent buckling. Fill gaps with flexible sealant designed for outdoor use to maintain waterproofing without restricting movement.
