For proper maintenance and smooth engine operation, always consult the specific routing plan for the drive components of your vehicle. The correct positioning of the pulleys and tensioners is critical for ensuring efficient power distribution throughout the engine.
Start by locating the primary tensioner and adjust it accordingly to ensure the belt maintains optimal pressure. Next, ensure the alignment of the crankshaft and alternator pulleys. Misalignment can cause uneven wear, reducing belt lifespan and possibly leading to failures.
Ensure that the serpentine loop follows the manufacturer’s exact specifications. A slight deviation could result in the loss of power steering, air conditioning, or even engine overheating. The correct routing also ensures that each pulley operates within its designed parameters, preventing unnecessary strain on the engine components.
Finally, regularly inspect for signs of wear, such as fraying or cracking. Replacing the belt before it shows clear damage can save you from more costly repairs down the line.
Engine Serpentine System Configuration
For proper engine operation, follow these steps when inspecting the serpentine setup:
- Ensure the primary pulley is aligned with the tensioner mechanism.

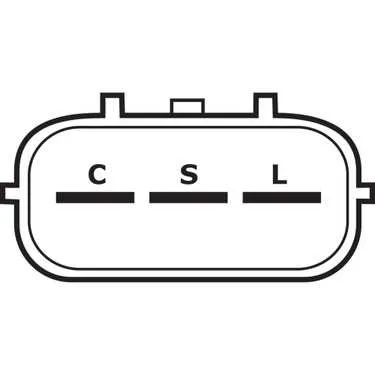

- Verify that the alternator is correctly positioned with the correct rotation direction.
- Check for proper routing around the power steering pump to avoid slippage.
- The water pump pulley must align with the crankshaft to maintain balanced movement.
- Inspect the idle pulley and tensioner spring for signs of wear or damage.
When replacing the drive components, consider the following specifics:
- Ensure a snug fit between the crankshaft pulley and the timing cover.
- The correct sequence of routing prevents overextension or twisting of the system.
- Check the condition of the auxiliary pulleys to avoid unnecessary friction.
For proper adjustment, utilize the tensioner tool to set the required tension before securing the components.
Be sure to recheck the routing after installation and start the engine to confirm smooth operation.
How to Identify the Correct Routing for the Engine Accessories

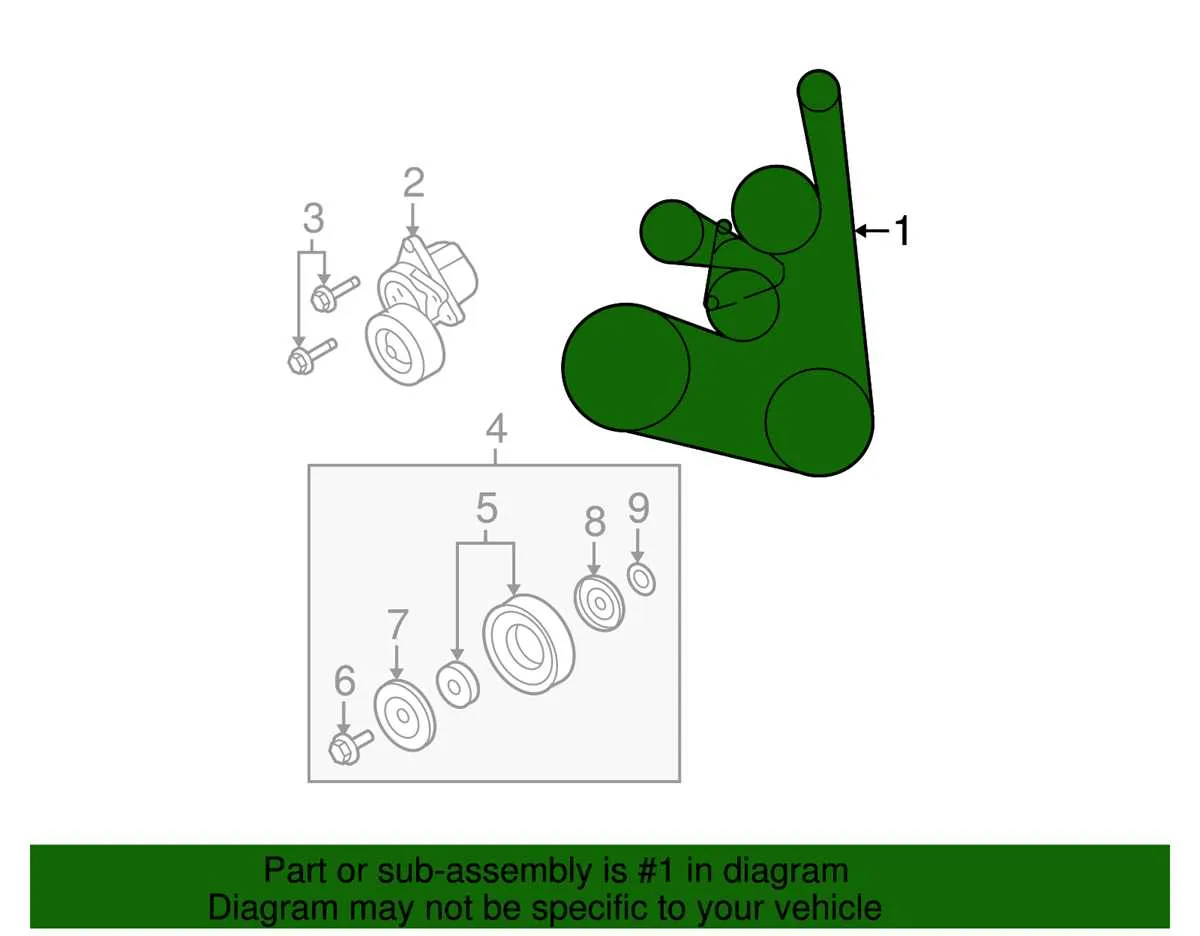

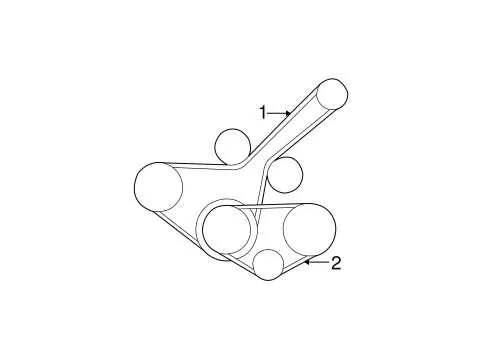

Start by referring to the factory manual for a precise reference of the routing. Verify the position of each component that the serpentine system is connected to, such as the alternator, power steering pump, air conditioning compressor, and water pump. A well-placed diagram will show how the belt should wrap around each pulley and its specific tension. Ensure the belt is correctly aligned with each part without interference or over-tightening. The direction of the pulleys should be followed, with the drive pulley on the crankshaft and all idler pulleys properly positioned to keep the system in place.
Use a mechanic’s tool to rotate the pulleys manually, checking for smooth operation and no binding. Pay attention to any wear on the existing belt that might indicate improper routing or misalignment. If replacing, inspect the pulleys for any damage before fitting the new belt. Double-check the routing after installation, ensuring the belt follows the exact pattern, and then test the engine at idle for any unusual sounds or movements.
Common Serpentine Issues and Solutions
If you notice squealing noises or poor engine performance, it’s often linked to a worn or improperly tensioned serpentine belt. The most common issues include cracking, fraying, or loss of tension. To resolve these, regularly inspect the condition of the serpentine for visible signs of wear. If cracks are visible or the belt appears brittle, replacement is necessary.
Another frequent problem is misalignment, which can occur due to a faulty pulley or tensioner. If the belt is not running in a straight line across the pulleys, it can cause uneven wear and lead to a breakdown. In this case, realignment or replacement of the damaged components is crucial to prevent further damage.
When the serpentine belt is loose, it may cause overheating of the engine or failure to power accessories like the alternator or air conditioning system. Ensure the tensioner is functioning correctly and replace it if there is a noticeable decrease in tension. Tightening or replacing the tensioner is an effective solution to restore optimal performance.
Leaks from the power steering pump or other fluid systems can also degrade the belt over time. If you notice fluid around the belt or pulleys, address the leak first before replacing the belt to prevent premature failure.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Altima 2.5
Before you begin, gather the necessary tools: a ratchet wrench, a serpentine belt tool (if needed), and a replacement drive belt. Make sure the engine is turned off and has cooled down completely to avoid burns or injuries.
1. Locate the tensioner pulley. Use the wrench to rotate the tensioner counterclockwise to relieve pressure from the belt. Be cautious while doing this, as the tensioner will be under spring pressure.
2. Once the tension is released, carefully slide the belt off the pulleys. Take note of the belt routing for reinstallation–take a photo or refer to the vehicle manual if necessary.
3. Check the pulleys and components for wear or damage. This includes the alternator, water pump, power steering pump, and air conditioning compressor. If any parts seem damaged, replace them before installing the new belt.
4. Install the new serpentine belt following the exact routing of the old one. Make sure the belt sits properly on each pulley groove. Start at the bottom pulleys and work your way up to avoid twisting or misalignment.
5. Rotate the tensioner again with the wrench to allow the belt to slip over the pulley. Slowly release the tensioner to apply pressure on the belt, ensuring it is tightly secured.
6. Double-check the belt for proper tension. If the belt feels loose or misaligned, repeat the process. Make sure the belt moves freely without any slipping or unusual noises.
7. Start the engine and observe the belt in operation. If you notice any abnormal sounds, vibrations, or slippage, stop the engine and inspect the installation.
