If you’re troubleshooting your wet/dry cleaning device, start by locating the key internal elements that are crucial for its functionality. The motor assembly is at the heart of the system, powering the suction mechanism. Examine the impeller for any signs of damage or obstruction, as it directly impacts suction efficiency. A damaged impeller can significantly reduce performance.
Next, inspect the hose connections and check for blockages. Clear airflow is essential for optimal operation, and even small obstructions can cause the cleaner to lose power. Also, verify the filter system–it should be cleaned or replaced periodically to avoid reduced suction and ensure the system isn’t strained by debris buildup.
Pay attention to the bucket assembly. Cracks or wear can lead to leaks and damage, so ensure all seals are intact. Regularly check the motor housing to make sure it’s properly secured and free of dust or debris buildup that could cause overheating or reduce longevity.
For routine maintenance, don’t forget to replace wearable components such as the gasket or suction head, which can degrade over time. Keeping these parts in good condition will extend the lifespan of your cleaner and maintain its full functionality.
Essential Components of a Wet-Dry Cleaner System
Identify the key elements for an efficient cleaning tool setup. Ensure the motor housing is securely mounted, providing optimal airflow for suction. A well-maintained hose should be free of blockages and have a proper seal with the intake port to prevent loss of suction power.
Ensure that the filtration unit, whether a foam or cartridge filter, is intact and positioned correctly to trap debris without clogging. A damaged or missing filter can significantly reduce efficiency. When checking the container, confirm that the lid fits snugly to avoid any leaks during operation, as an ill-fitting cover can cause spills or inefficiencies.
The caster wheels on the base should be intact and rolling freely, allowing easy mobility. If the wheels are stuck or damaged, replace them to prevent strain on the motor and ensure smooth movement.
Inspect the exhaust port to confirm no obstructions are present, which could impede air flow. Lastly, the power switch must be responsive, with no delays in activation. Routine checks for wear and tear on cords and plugs are essential for safety.

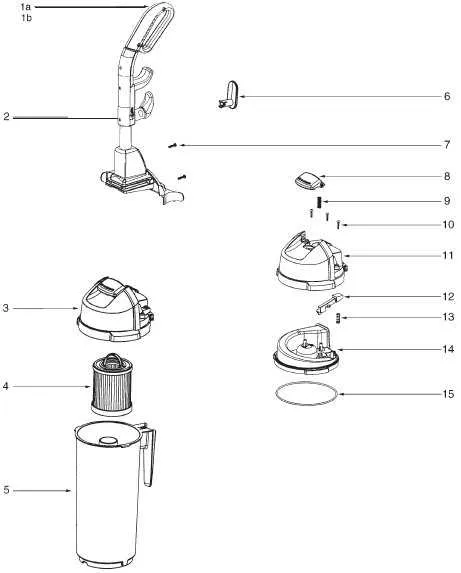

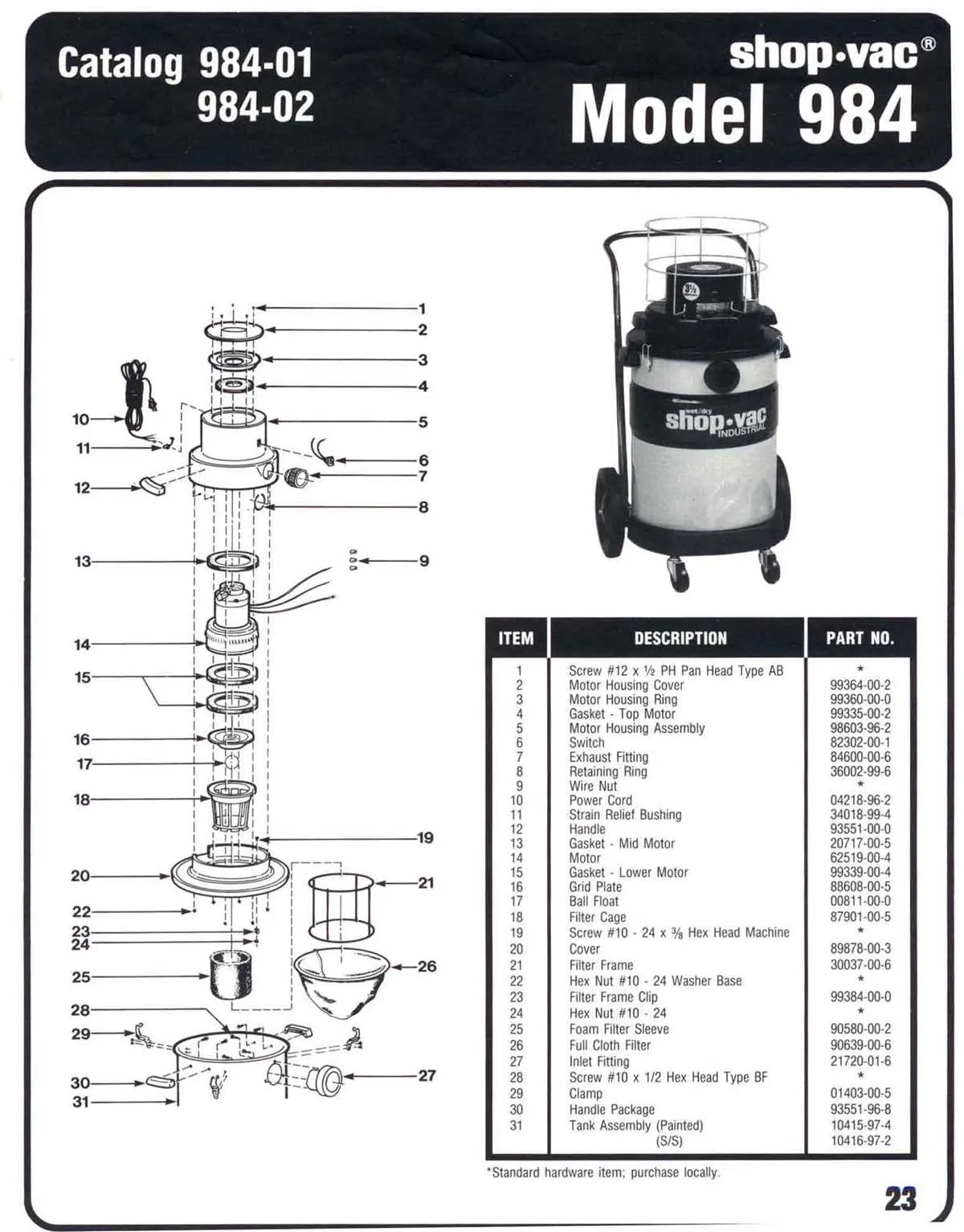

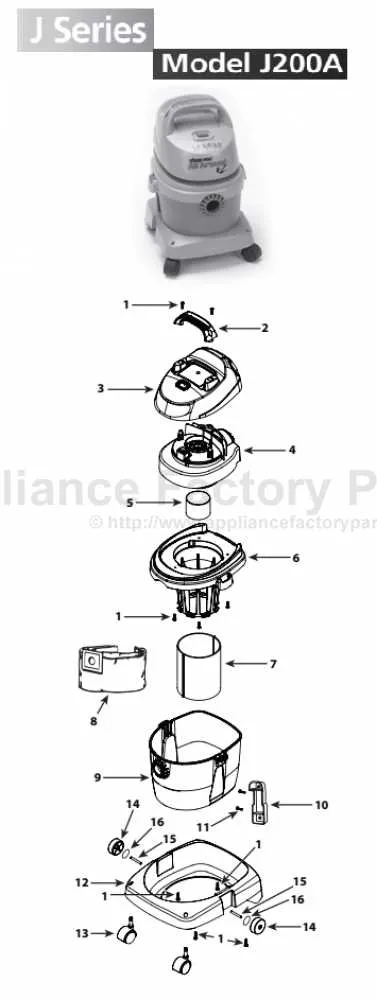

Identifying the Key Components in a Wet/Dry Cleaner Blueprint
To effectively repair or maintain your device, it’s essential to understand its core elements. Here’s how to identify the critical components within a blueprint:
- Motor Housing: Located centrally, it encloses the motor, which drives suction. It’s usually depicted at the core of the schematic.
- Filter System: Typically shown as a cylindrical or flat object, it traps debris and dust. Pay attention to its placement near the air intake and exhaust areas.
- Collection Tank: This part is usually represented as a large, semi-transparent container. It stores debris and liquids and connects to the motor system through hoses.
- Hoses and Attachments: These are shown as flexible tubes or nozzles. They are essential for directing airflow and capturing debris. Look for varying sizes indicating different attachment types.
- Power Cord and Switch: The power supply typically appears as a line with a switch or button symbol. It’s essential for turning the unit on/off and regulating power.
- Exhaust Port: This is where air exits the machine after suction. It’s often depicted near the rear of the schematic, opposite the intake port.
When examining the layout, follow the flow of air and debris from intake to exhaust, ensuring every element is connected properly. Familiarizing yourself with these components will aid in troubleshooting and enhancing performance.
How to Replace Commonly Damaged Components in Your Vacuum System
To replace a broken hose, begin by removing the old one from the inlet and outlet connections. Ensure the replacement hose matches the diameter of the original. Carefully attach it, ensuring a snug fit to avoid air leaks. Tighten any fasteners or clamps that secure it in place.
If the filter is clogged or damaged, disconnect the filtration unit and remove the old filter. Clean the filter area before placing a new one, ensuring proper alignment with the housing. Check for any signs of wear, especially on rubber seals, and replace them if needed to maintain suction efficiency.
For damaged power cords, first unplug the unit and remove the screws holding the outer casing. Carefully expose the damaged cable and cut it out. Replace it with a similar-rated cord, reattaching it to the power terminals. Secure the casing back and test the unit.
When dealing with a faulty motor, it’s essential to assess whether it’s repairable or needs a complete replacement. Disconnect the power supply and disassemble the housing. Remove the motor by unfastening any screws and disconnecting wires. Install the new motor, ensuring it’s properly aligned with the mounting points and wiring is securely attached.
If the lid or cover is cracked, remove it by unscrewing any bolts holding it in place. After removing the old lid, align the new one and screw it back into place. Be sure to check the seal around the lid to prevent any air leaks during operation.
Understanding the Function of Each Component in a Vacuum System
Each element of a vacuum cleaning unit has a specific role that ensures optimal performance. The motor is the driving force behind the suction power, generating airflow by spinning the fan blades. The fan assembly, located near the motor, directs air through the system, creating a vacuum effect that pulls debris into the collection chamber.
The filtration system, often consisting of a filter or bag, captures fine particles to prevent them from being released back into the air. It plays a critical role in maintaining air quality and ensuring smooth operation by preventing clogging within the vacuum’s hose and inlet. Regular maintenance of the filter is crucial for consistent performance.
The hose connects the suction mechanism to the collection container, transferring debris to the collection chamber. Its flexibility and durability are essential for maneuverability and long-term use. Ensure that the hose is free from blockages and cracks to maintain effective airflow.
The collection chamber, typically a tank or bin, holds the debris collected during cleaning. It’s important to monitor the capacity and regularly empty it to prevent overheating or motor strain. Some models offer easy-empty features, allowing for a quick and mess-free disposal of the contents.
Valves and seals within the system maintain airtight integrity, ensuring maximum suction efficiency. These components need to be checked periodically for wear or leaks, as even a small opening can significantly reduce the system’s performance.
Accessory attachments, such as nozzles and brushes, allow for versatile cleaning across different surfaces and environments. The right attachment can improve cleaning efficiency by targeting specific types of dirt or debris. Select attachments based on the job to avoid unnecessary strain on the system.
Lastly, the power switch and cord management system facilitate ease of use. The switch should be easily accessible and in good working order, while the cord should be coiled properly to prevent tangling or damage. Regularly inspect both to ensure safety and functionality.
