Ensure a safe and reliable connection between your pickup and any towing equipment by carefully following the wiring guide for your vehicle. Proper setup guarantees that all necessary functions–brakes, lights, and turn signals–are fully operational during towing.

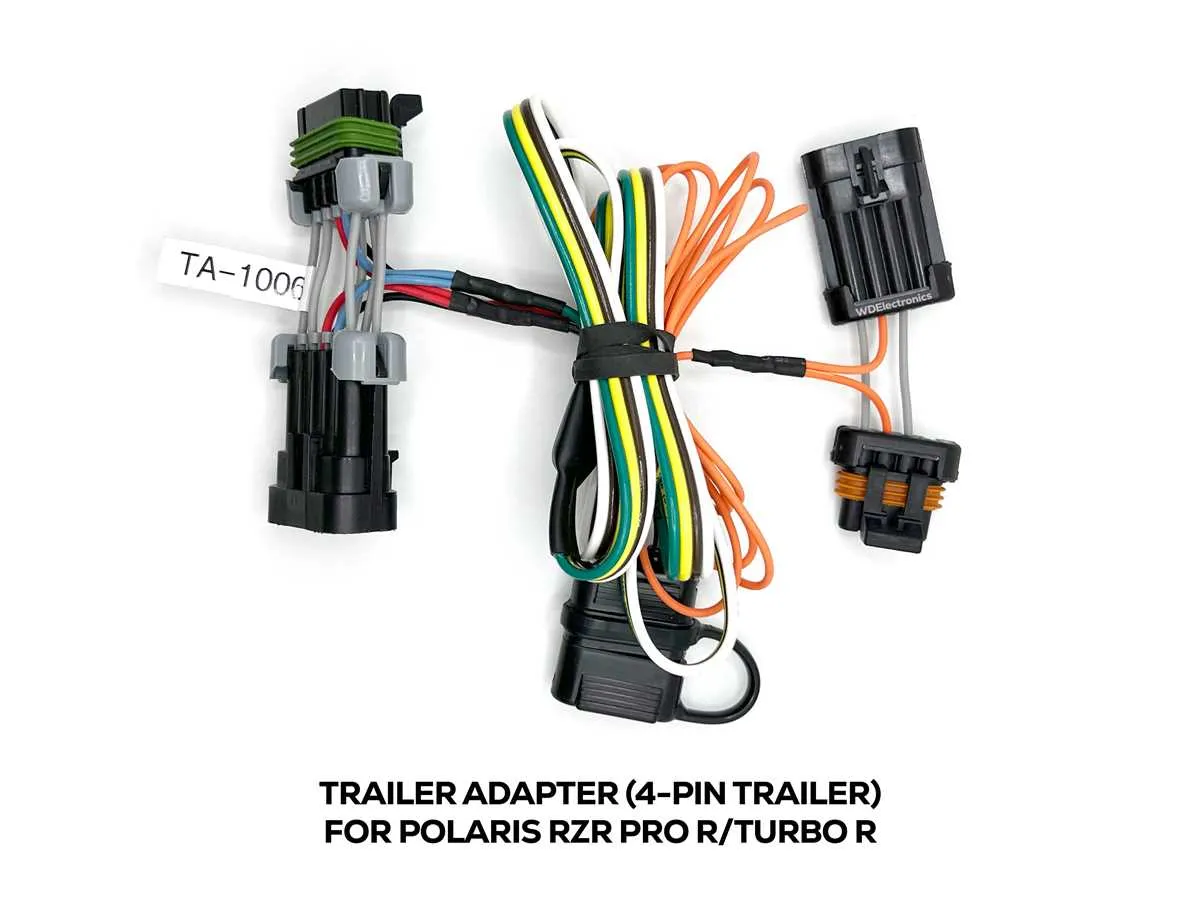

For the best results, use a high-quality adapter harness tailored to your vehicle’s connector. This eliminates potential issues with voltage compatibility and prevents damage to both the truck and the attached equipment. Always verify that the wire colors match the standards set for your truck model, especially if using an aftermarket harness.
The electrical system of your vehicle may vary slightly depending on the specific model and trim level. Therefore, consulting the manufacturer’s manual or a trusted technician for precise pinout information is crucial. Pay close attention to the amperage ratings to avoid overloading circuits, and make sure fuses and relays are properly sized.
Additionally, make sure that the connectors are clean and free from corrosion. Over time, weather exposure can degrade the metal contacts, leading to intermittent failures. Regular maintenance of your connections, including checking for wear or rust, will extend the life of both your truck’s electrical components and the attached equipment.
Electrical Connections for Towing Setup
To ensure proper electrical functionality when connecting a tow vehicle to a cargo or boat unit, follow these specific steps for correct setup.
- Start by identifying the correct connectors on your vehicle’s rear harness, often located near the bumper or under the vehicle bed. These typically correspond to the 4-pin or 7-pin connectors.
- Verify that the battery system is fully charged and that fuses related to the towing setup are intact and undamaged.

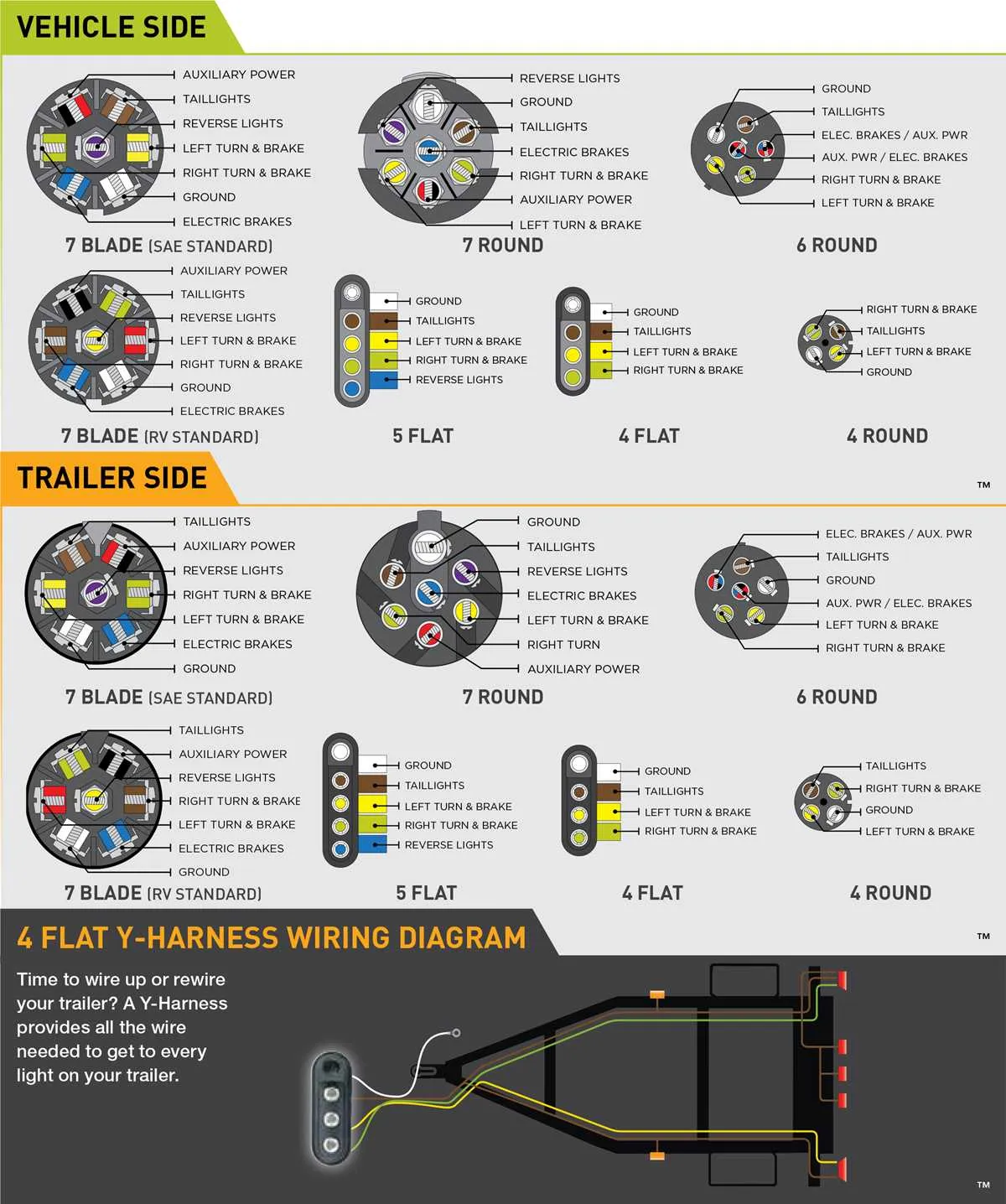

- Match each pin on the harness to the correct function:
- Ground (usually a white wire)
- Left turn signal and brake light (green wire)
- Right turn signal and brake light (yellow wire)
- Tail lights (brown wire)
- Reverse lights (blue wire, if applicable)
- Auxiliary power (red or black wire, if necessary)
- Use corrosion-resistant connectors to secure each wire to its corresponding pin. This ensures a stable and secure connection, reducing the chance of malfunction.
After completing the physical installation, double-check each circuit by testing the connections with the tow unit connected. Use a circuit tester or towing light test tool to verify that signals are transmitted properly.
- If there is a power issue, inspect the vehicle’s fuses and ensure all connections are tight. Recheck ground connections to ensure there are no interruptions in the flow of current.
- If using a 7-pin system, ensure the auxiliary power pin is connected to the vehicle’s battery and not shorted or improperly wired.
These steps will ensure that the electrical setup operates safely, providing reliable communication between the vehicle and the towed unit.
How to Identify the Tow Vehicle Pinout for the 2022 Pickup

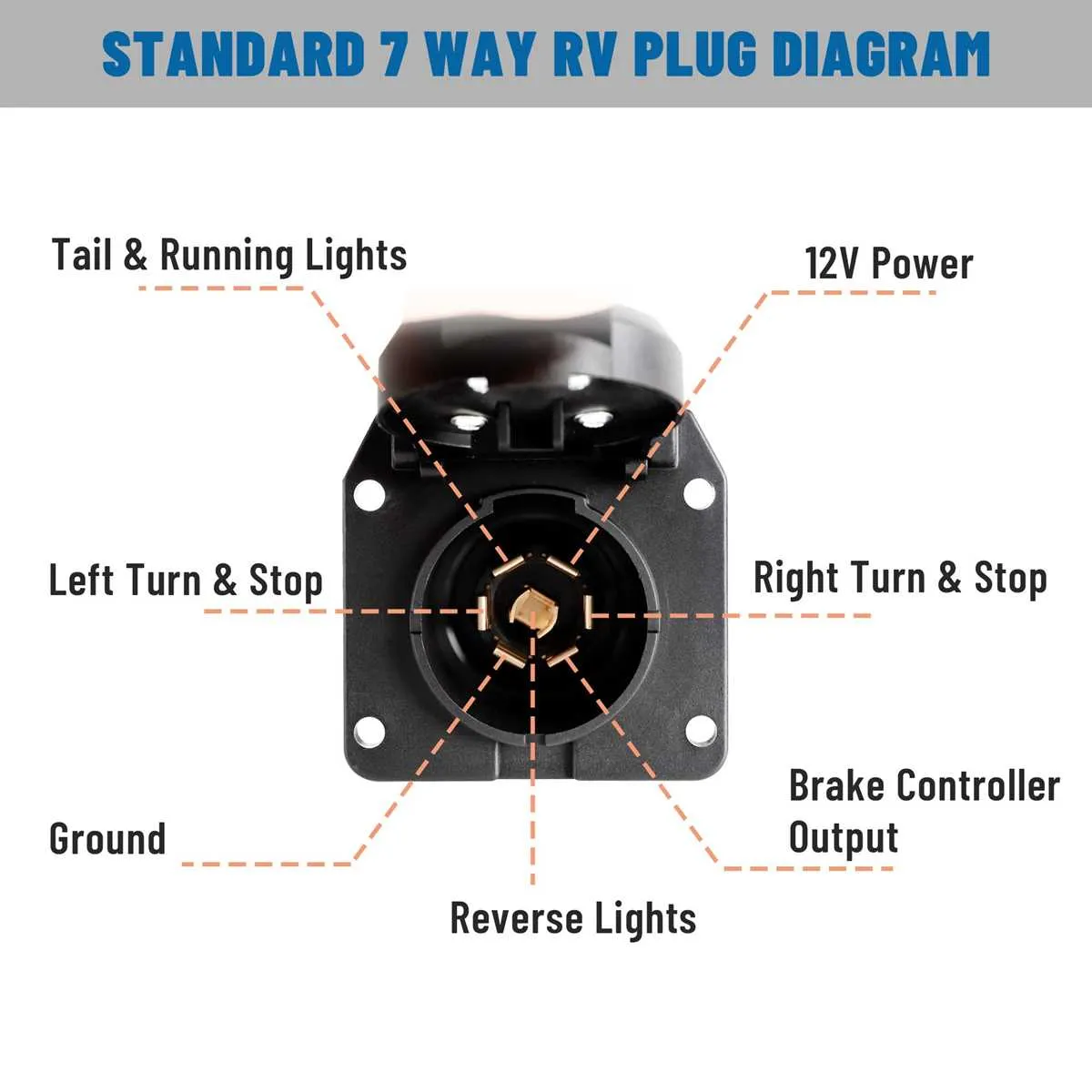

Start by locating the 7-pin connector at the rear of your vehicle, which is typically near the hitch. The central pin is often the ground (Pin 1), and the outer ring (Pins 2-7) will correspond to various electrical functions for your connection. To identify each pin:
Pin 1: This is the ground. It’s usually the larger pin in the center.
Pin 2: This carries the left turn signal and is typically located to the left of the ground pin.
Pin 3: The right turn signal is assigned here. It is positioned to the right of the central ground.
Pin 4: The brake light connection can be found adjacent to the right turn signal pin. This pin typically supplies power for your braking lights.
Pin 5: This is the tail light connection, which can be found next to the left turn signal pin.
Pin 6: The 12V battery connection can be found here. It provides a constant power supply for auxiliary systems like electric brake controllers or charging systems for a caravan.
Pin 7: This is the backup light connection, enabling the backup lights of a connected load to activate when the vehicle is in reverse.
Ensure that each pin is securely connected and free of corrosion to maintain the functionality of your system. If you’re unsure, consider consulting the vehicle’s manual or using a multimeter to test the functionality of each pin.
Step-by-Step Guide to Installing a Towing Harness on the Pickup Truck
Start by locating the connector panel under the rear bumper of the vehicle. You will need to remove any covers or panels that are obstructing access. Use a screwdriver or panel removal tool to carefully detach the covers without damaging them.
Next, find the electrical connector on the vehicle’s frame. This is typically a sealed socket designed to link up with the new harness. Make sure it is clean and free of debris before proceeding. If there are any corrosion or rust, clean the area with a wire brush or sandpaper.
Unbox the new connector assembly. Ensure it matches the one on the vehicle. Align the matching ends of the connector and firmly press them together until you hear a click, signifying a secure connection. Double-check the connection to ensure there is no slack or looseness.
For the grounding step, locate the designated bolt on the vehicle’s frame, usually near the connection point. Attach the ground wire of the harness to this bolt and tighten it securely using a wrench. Proper grounding is crucial for stable electrical performance.
Route the harness along the underside of the vehicle, avoiding any moving parts or areas that could cause wear and tear. Use zip ties or clips to keep the wiring secure and prevent it from dangling or getting caught in any parts of the truck’s suspension or exhaust system.
Once the harness is in place, connect the other end to the vehicle’s connector. Before finalizing the installation, check for proper fitment and clearance, ensuring that no wires are pinched or exposed to elements that could cause damage.
Test the harness by connecting a compatible accessory. Activate the electrical components, such as lights or signals, to verify functionality. If all systems are working correctly, reattach any covers or panels that were removed earlier.
Finally, conduct a thorough inspection of the installation. Make sure all connectors are secure, the harness is neatly routed, and there are no loose wires or exposed connections that could cause a short circuit.
Troubleshooting Common Issues with the Towing Electrical System
If you experience lighting issues, start by checking the connections between the vehicle’s rear electrical ports and the plug harness. Ensure that no corrosion is present and that the contacts are clean. Loose or dirty terminals can cause intermittent connection problems or a complete failure of some lights.
Brake Light Malfunction: A common issue arises when the brake light doesn’t work on the connected unit. Verify the vehicle’s fuse for the brake system; a blown fuse is often the cause. Also, check for any damaged pins in the connector that might be preventing a proper signal transfer.
Power Loss to Trailer Accessories: If the power to accessories like air compressors or auxiliary lights is inconsistent, inspect the ground connections. A poor ground connection can cause a significant voltage drop, affecting multiple systems. Tighten or replace any ground wires that show signs of wear or corrosion.
Left or Right Turn Signal Problems: Faulty turn signals can be traced to a damaged relay or malfunctioning socket. If one side of the trailer doesn’t signal properly, check the individual circuits for continuity. Replace any defective relays or bulbs that are not lighting up.
It is crucial to use a multimeter to check for voltage drops across the connection points. This method helps identify any weak links in the circuit.
