For controlling the lighting from multiple locations, the process involves correctly linking the electrical components. You’ll need a set of specialized components, including two control units that can manage the same light fixture. Ensuring accurate connections is crucial for the safety and functionality of the system.
The first step is to run the power from the source to the initial control device. After that, connect the traveler wires to link the two units. These traveler connections allow the second device to communicate with the first, making it possible to adjust brightness from either position.
Next, ensure that the neutral wire is properly connected to the fixture. This wire completes the circuit and ensures that the light will function when the power is turned on. It’s essential to check for proper grounding as well to avoid potential electrical hazards.
Double-check the connections and test the system before securing any covers. Make sure the system is working correctly, allowing for control of the light from different spots in the room.

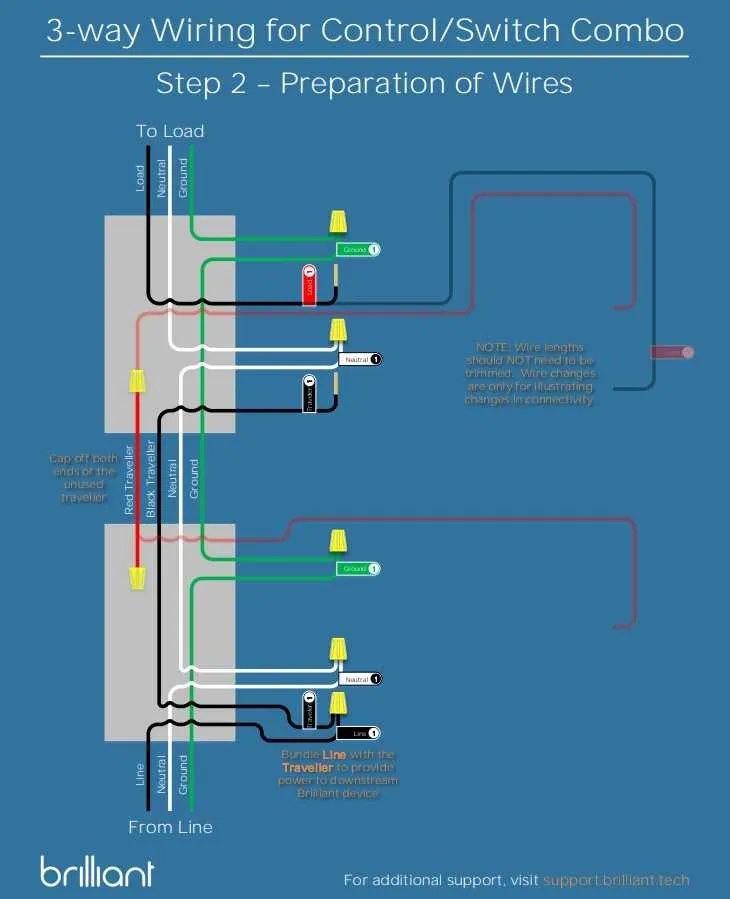

Connecting a Multi-Control Lighting System
To properly set up a dual-control light circuit, ensure that both controlling devices are correctly wired for effective operation. The primary element involves linking the power source to the first unit and then routing the control wires to the second. Make sure that the neutral wire is consistently connected to the appropriate terminal on both units.
First Unit Installation: Begin by connecting the incoming power cable to the designated terminal. Then, attach the traveler wires to the respective terminals for controlling the flow of electricity. This will enable the two units to work in unison for optimal performance.
Second Unit Setup: The second device should be linked similarly to the first, with one traveler wire coming from the first unit and the other from the power supply. The common terminal should be connected to the load wire, ensuring that the system is ready to activate the connected lights as intended.
Important Tip: Before securing all the components, double-check that all connections are firm, with no loose wires. This will prevent any electrical failures or malfunctions during operation.
How to Connect a Dual-Control Light Regulator for Standard Lighting Setup
For a lighting system with two controls, start by ensuring the power is off at the breaker. You’ll be dealing with three wires: live (hot), neutral, and traveler. The live wire is typically black, while the neutral is white, and the traveler wires are red or sometimes another color. Identifying these correctly is crucial to avoid any issues.
First, connect the live wire from the power source to the input terminal of the first control device. This terminal is generally marked as “common” or “line.” The second device will also have a “common” terminal where the live wire from the light fixture connects.
Next, take the traveler wires and connect each one to the respective traveler terminal on both devices. These are usually marked as “T1” and “T2.” The traveler wires allow for the control of the lighting from either device.
Now, connect the neutral wire from the power source to the neutral terminal on the fixture. If the neutral is not already connected at the fixture, you’ll need to run a neutral wire from the first device to the fixture. This ensures that the circuit completes properly.
After securing the wires, double-check that each connection is tight and correct before attaching the faceplates and turning the power back on. Test the system by adjusting both controls to ensure the light intensity is properly managed from both locations.
Tip: If you’re unsure of any connection or encounter difficulties, it’s a good idea to consult a professional to ensure safety and compliance with electrical codes.
Common Installation Mistakes When Setting Up a Multi-Position Light Controller
Improper connections are the leading cause of malfunctions when installing a multi-position light controller. Ensure that connections are made to the correct terminals to avoid issues such as flickering or no light at all.
- Incorrect terminal connections: The most frequent error is confusing traveler and common terminals. Ensure the common terminal connects to the power source and the traveler terminals to the load and other controller.
- Not connecting the ground wire: Always connect the ground wire to the designated terminal on the unit. Failing to do so can result in a short circuit or an electrical hazard.
- Misplaced neutral wires: In many setups, neutral wires are not always required at the controller, but if they are, ensure they are correctly placed on the designated terminal. Misconnection can prevent proper functionality.
- Loose connections: Tighten all terminal screws. Loose connections lead to poor contact and can cause arcing, which might damage the components and cause intermittent operation.
- Overloading the circuit: Confirm that the total wattage of all connected bulbs does not exceed the controller’s rated capacity. Overloading may result in overheating and damage to the controller.
Double-check these aspects to ensure proper operation and avoid unnecessary troubleshooting.

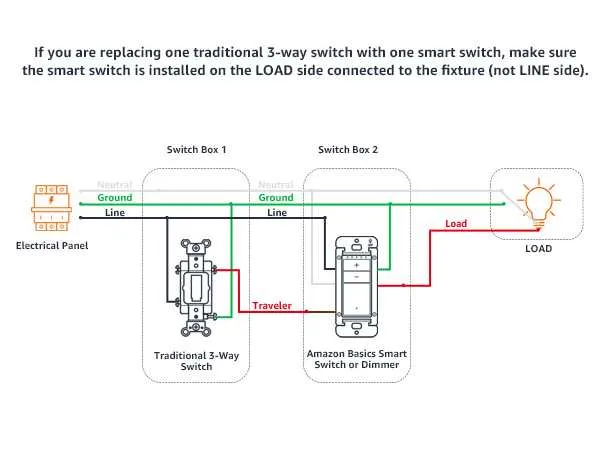

Upgrading from a Traditional 3-Wire Setup to a Light Control System
When replacing a conventional control system with a light adjustment mechanism, ensure that the new device is compatible with your existing setup. Start by turning off the power at the breaker to prevent electrical hazards. Remove the old device carefully, noting the connections. Typically, you’ll find three wires: a common, a traveler, and a load wire. Document the current configuration as a reference.
The replacement model usually includes a dedicated terminal for neutral wiring. If your current installation lacks a neutral wire, this upgrade will require an additional connection to the panel. This is crucial for ensuring proper functionality of the adjustment feature.
Connect the wires as per the manufacturer’s instructions. For most models, the load wire connects to the output terminal, and the traveler wires connect to the corresponding input terminals. Make sure to secure the connections tightly and avoid any loose strands that could cause short circuits.
After installation, carefully check for any exposed wiring before replacing the cover plate. Turn the power back on and test the mechanism to confirm that it adjusts the light levels as intended. If issues arise, double-check the connections and confirm the circuit is properly grounded.
