For anyone working with retractable outdoor covers, understanding the specific components and their functions is crucial for efficient repairs and maintenance. The essential hardware includes the frame structure, roller tube, fabric support arms, and various tensioning mechanisms. Make sure to always check the spring tension when adjusting the cover, as improper tension can lead to uneven extension or retraction.
Regular inspection of the mechanical joints and fasteners is key to maintaining smooth operation. Pay particular attention to the locking pins and screws that secure the support arms, as these often experience wear due to frequent use. Additionally, lubricate the moving parts to prevent rust and ensure ease of use. It’s important to verify that all springs are correctly installed, as they play a critical role in keeping the fabric taut.
If you’re facing issues with extending or retracting, the problem might lie in the mounting bracket or the roller mechanism. Ensure that these elements are tightly secured and free from debris. If the cover is not retracting completely, check for obstructions along the guide rails or signs of wear on the roller itself.
Lastly, a visual guide or schematic can be immensely helpful when disassembling or replacing any part. A detailed breakdown can assist in identifying potential issues quickly and ensuring that every component is correctly reassembled after maintenance or repair.
Essential Components of Your Canopy System
Ensure you’re familiar with the key components that make up your outdoor shading system to easily troubleshoot or upgrade it. The primary elements include the frame, the fabric, the tensioning mechanism, and the wind/sun sensor. Regularly inspect the fabric for any tears or fading and check that the frame is securely mounted and free from rust. For smooth operation, lubricate the rollers and check the tension system for any slack or damage.
Don’t overlook the electronic parts, such as the control switch or remote. They can malfunction over time due to exposure to the elements, so test them periodically to ensure proper functionality. Additionally, the support arms and brackets must be checked for signs of wear, especially if the system is manually operated.
For installation or repair, always refer to the manufacturer’s technical reference materials for precise guidance. When replacing components, make sure they are compatible with your model to avoid misalignment or operational issues. If your system includes a motor, verify the connection wiring and the motor’s performance regularly.
Regular maintenance of these elements will prolong the life of your shading structure and ensure its reliability during use.

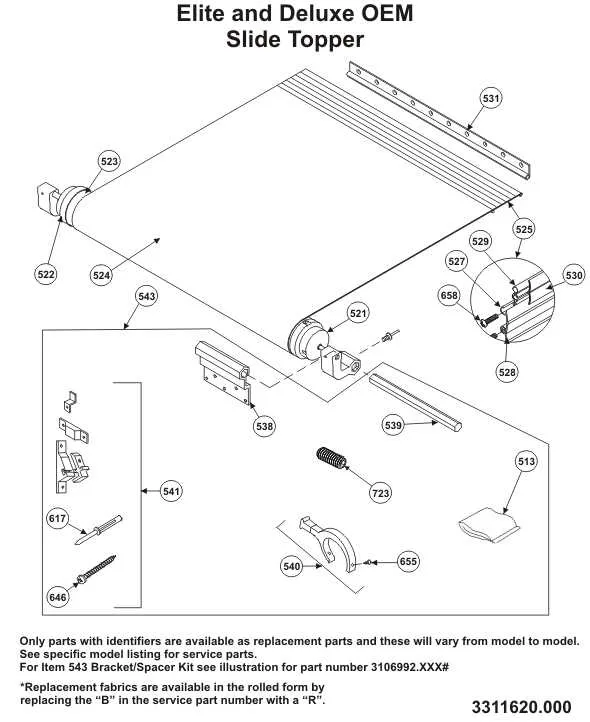

How to Identify Key Components in a Canopy System Schematic

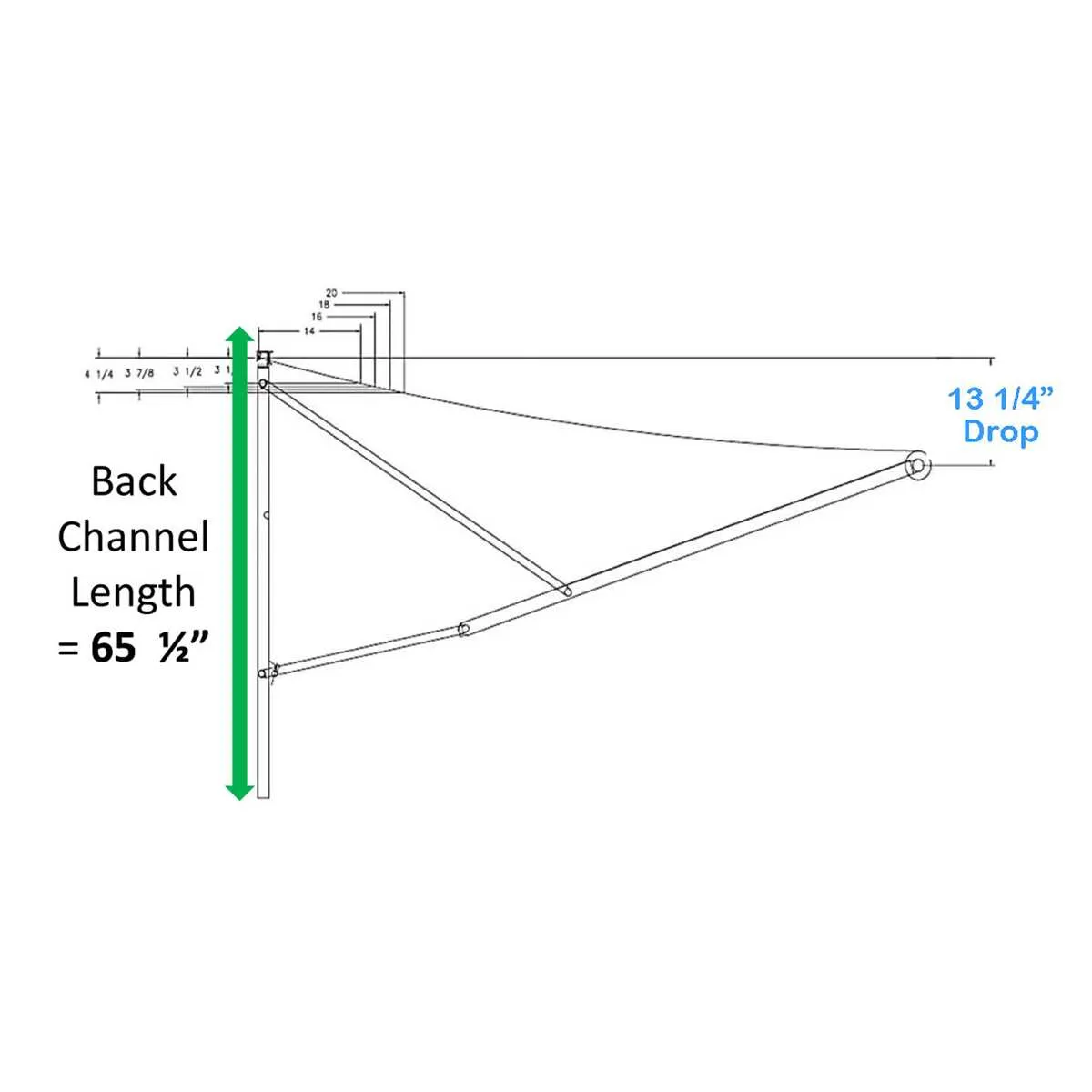

Start by locating the main structure components such as the frame, typically shown as a large, rectangular outline. This is the backbone of the setup and supports other elements. The support arms, usually attached to the frame, are illustrated as long, angular lines extending outward. These are critical for the extension and retraction mechanisms.
Next, focus on the canvas material, which often appears as a shaded or solid block, showing the area that provides coverage. Pay attention to the roller tube, depicted as a cylinder at one end, which is responsible for storing the canvas when retracted. It’s vital for the operation of the entire system.
Identify the operating mechanism, commonly shown as a gear or crank system that controls the movement. These are usually marked with arrows indicating rotation, signifying the direction of extension or retraction. Check the tension springs in close proximity, which help maintain the fabric’s tightness during operation.
Lastly, locate the mounting brackets, usually placed at the ends of the frame, which anchor the system to the vehicle or structure. These are essential for stability and secure attachment during use.
Step-by-Step Guide to Understanding Canopy Components Layout
1. Start with the frame assembly – Identify the main support structure. This usually includes horizontal beams and vertical posts that hold the entire system in place. Ensure the main brackets are securely fixed before proceeding to the next stage.
2. Locate the fabric roll mechanism – This is the core of the system, responsible for retracting and extending the covering. Verify that the spring tension is balanced and the roller tube is free of any obstructions to guarantee smooth operation.
3. Examine the mounting brackets – These are essential for attaching the entire system to the vehicle or structure. Make sure they are securely fastened and aligned with the frame’s pre-marked positions to prevent misalignment during extension.
4. Check the arm extension system – The arms support the covering as it extends. The mechanism can either be manual or powered, so test the joints and hinges for smooth movement. Ensure the arms are not stiff or blocked by debris.
5. Understand the tensioning system – This system ensures the covering remains taut during use. It typically involves spring-loaded components that keep the fabric stretched when deployed. Inspect the springs for wear and tear, as they can lose tension over time.
6. Review the weatherproof seals – These seals help protect the mechanism from water and dirt. Check the rubber or plastic seals for cracks or damage, especially where the structure meets the vehicle or wall.
7. Familiarize yourself with the locking mechanism – It’s crucial to secure the canopy in place when extended. Check that the locks engage properly and hold the arms firmly to prevent them from retracting accidentally.
8. Perform a safety inspection – Verify that all components, especially the frame and fabric, are free from damage. Look for any sharp edges or loose fittings that could pose a safety risk when operating the system.
9. Regularly maintain moving parts – Lubricate the joints and hinges to avoid rust and wear. Keep the mechanism clean and inspect for any obstructions that could interfere with the system’s performance.
Common Troubleshooting Using Canopy System Parts
If your canopy system isn’t functioning as expected, check these common issues by referring to the schematic of individual components:
- Roller tube issues: If the fabric isn’t retracting smoothly, the roller tube could be jammed or misaligned. Inspect the roller mechanism and ensure it’s free from debris or corrosion.
- Spring tension problems: Too little or too much tension in the spring can prevent proper deployment. Adjust the spring tension based on manufacturer guidelines or replace it if worn out.
- Fabric misalignment: The fabric may have shifted, causing uneven deployment. Realign the fabric, ensuring it’s properly attached to the roller tube and that no part is snagged or overstretched.
- Motor or manual drive failure: If the motorized system fails to function, check for electrical issues such as a blown fuse or a disconnected wire. For manual systems, inspect the crank or gearbox for damage.
- Support arm malfunction: If one of the support arms is sticking or failing to lock in place, inspect the pivot points for wear. Lubricate or replace any worn-out components to ensure proper movement.
- Weather resistance: Exposure to harsh conditions can degrade certain parts, especially seals and joints. Inspect for cracks or tears and replace any compromised seals to maintain weatherproofing.
Regularly maintaining each component can help prevent these issues from recurring and ensure smooth operation when needed.
