Start with the correct identification of the fuel delivery system. The key to resolving performance issues often lies in understanding each element’s role, such as the intake valve, throttle assembly, and float chamber. Pay close attention to the adjustment screws and their specific functions–incorrect settings can lead to excessive fuel consumption or poor engine performance.
Ensure all gaskets and seals are in good condition to avoid air or fuel leaks that can disrupt the operation. A clogged fuel filter or incorrect jet size can significantly affect the engine’s power output. Regularly inspect these components, as wear and tear are common and require prompt replacement.
For thorough maintenance, disassemble the unit carefully and examine the needle valve for proper sealing. Improper assembly is a frequent cause of malfunction, and re-checking all fasteners and connections can save you from unnecessary repairs. Once reassembled, calibrate the fuel system to manufacturer specifications to restore optimal function.
Fuel System Overview and Assembly Guide
If you’re dealing with engine fuel issues, a detailed understanding of the fuel intake system is essential. Start by ensuring all components are correctly aligned, as even minor misplacement can lead to significant performance loss.
The fuel bowl should be securely attached to the main housing. Pay special attention to the gasket’s condition–if it’s worn, replace it immediately. A tight seal is crucial to prevent leaks. The needle valve must be clean and free of debris, as this regulates fuel flow into the chamber.
Next, check the idle mixture screw. Adjust it carefully to prevent engine stalling or rough idling. Turn it clockwise to lean out the fuel or counterclockwise to enrich the mixture. This adjustment requires fine-tuning to match engine needs precisely.
The throttle plate must operate smoothly without any resistance. Ensure it moves freely within the bore, and inspect the linkage for wear or damage. The spring tension on the throttle linkage should be checked for consistency, as improper tension can cause irregular fuel delivery and engine response.
Finally, inspect the venturi. It should be free of dirt or grime buildup that might impede airflow. Clean it with a soft brush or air, ensuring there are no obstructions that could disrupt the engine’s fuel-air mixture.

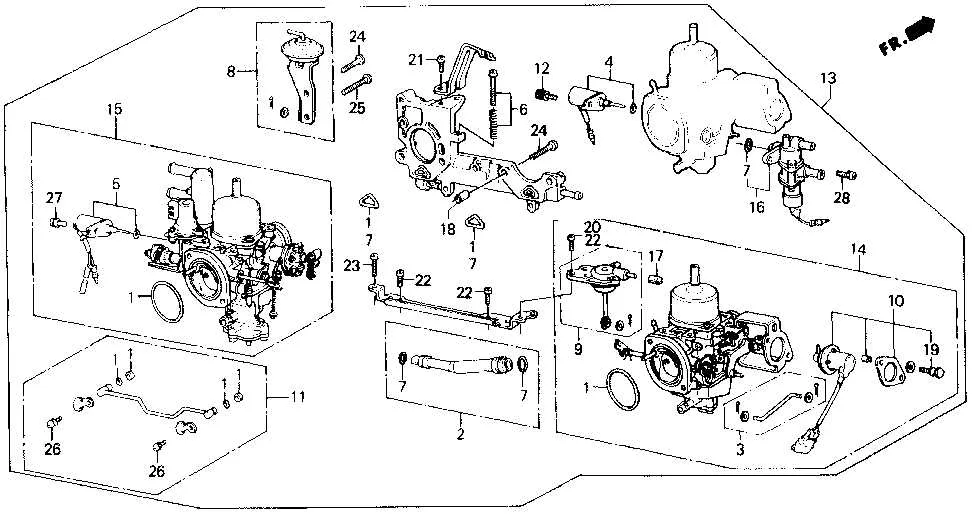

How to Identify Key Components in the Carburetor Schematic
To effectively navigate a carburetor schematic, focus on the following essential parts:
- Fuel Inlet: This is where the fuel enters the carburetor. Look for the connection point usually located at the top or side of the assembly.
- Throttle Valve: Positioned within the carburetor body, it controls the amount of air-fuel mixture entering the engine. Identify it by its movable nature.
- Needle Valve: Controls fuel flow into the float chamber. This part is typically found close to the float assembly.
- Float Chamber: Holds fuel and regulates its level to ensure a consistent supply. It’s connected to the needle valve and is vital for maintaining proper fuel flow.
- Air Intake: Look for the intake manifold or any port designed for air to enter. It is typically located opposite the fuel inlet.
- Jets: Identify the main and idle jets. The main jet is usually at the center of the assembly, while the idle jet is often smaller and positioned towards the bottom.
- Choke Mechanism: Look for a lever or valve that adjusts the air supply during cold starts. It is often situated near the intake or throttle valve.
By recognizing these components, you can easily troubleshoot or assemble the system, ensuring smoother engine performance.
Step-by-Step Guide to Disassembling and Cleaning the Carburetor
Start by ensuring the engine is off and cool to avoid burns or injury. Disconnect the fuel supply to prevent spills.
Remove the air filter cover and the air filter itself, giving you access to the carburetor. Use a wrench to loosen the bolts holding the carburetor to the intake manifold.
Once detached, take off the fuel bowl from the bottom of the unit. Be prepared for any leftover fuel to spill out. Remove the float assembly by unscrewing the pin holding it in place.
Clean the float bowl using a non-abrasive cloth and carburetor cleaner. Ensure that all jets and passages are free of debris. Use a small wire or needle to clear any clogged holes.
Inspect the needle valve for wear or damage. If it shows signs of corrosion, replace it. Clean the gasket area thoroughly before reassembling.
Reassemble the carburetor in reverse order, making sure to tighten the bolts securely without over-tightening. Reconnect the fuel supply and reattach the air filter and cover.
Before starting the engine, check for any fuel leaks. Once confirmed, run the engine and adjust the idle speed if necessary.

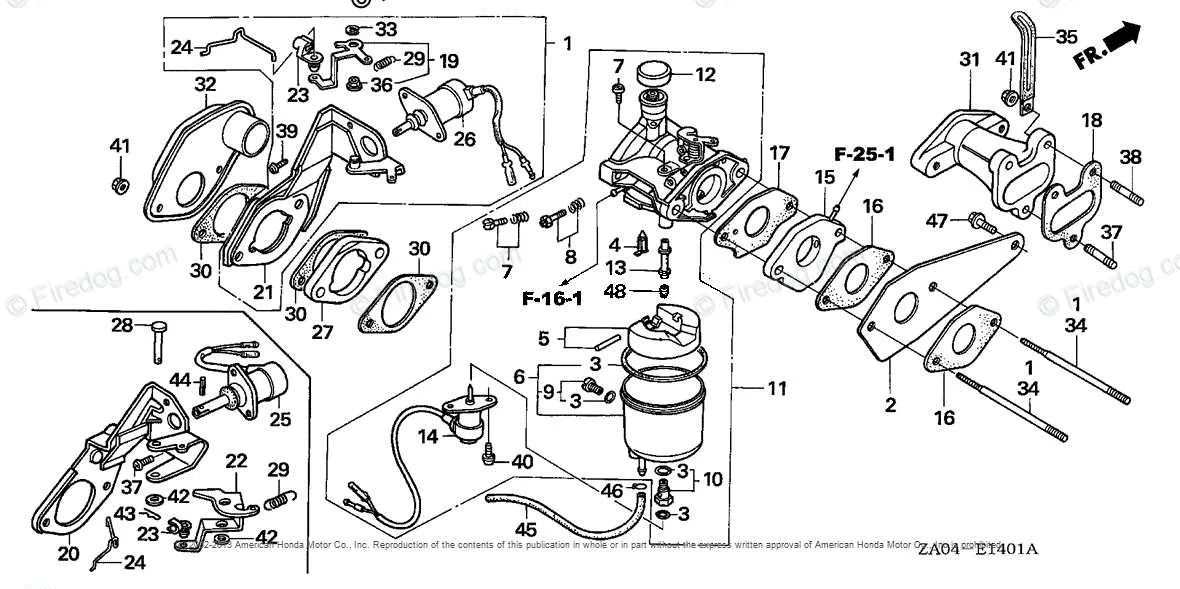

Troubleshooting Common Carburetor Issues Using the GX160 Diagram
To resolve fuel delivery problems, first check the fuel inlet valve for clogs or wear. Ensure the needle valve is properly seated and not sticking, as this can cause an incorrect fuel mixture. If the engine idles poorly or stalls, inspect the fuel passages and jets for blockages. These can easily be cleaned with compressed air or carb cleaner. Pay special attention to the air-fuel mixture screw; improper adjustment can cause rough idle or flooding.
If the engine hesitates or surges, the main jet may be partially blocked or misaligned. Refer to the illustration for correct positioning and ensure the jet is clear. A worn gasket or damaged O-ring can result in air leaks, leading to inconsistent fuel flow. Replace any damaged seals to restore optimal operation.
For hard starting, check the primer and choke for functionality. The choke must close fully to enrich the fuel mixture during cold starts. If the engine lacks power under load, it could be due to improper throttle valve adjustment or a clogged high-speed jet. Use the provided schematic to confirm correct settings.
Lastly, verify the float level. An incorrect float height can lead to over- or under-fueling, causing poor engine performance. Adjust it according to the recommended specifications for consistent operation.
