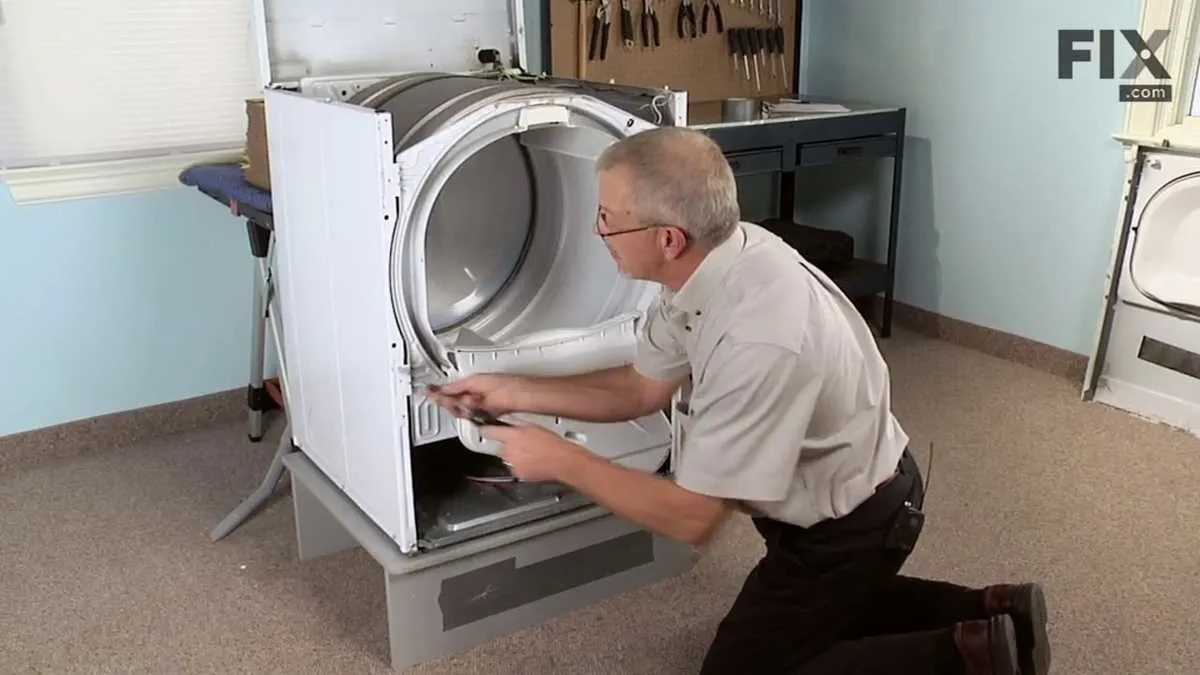

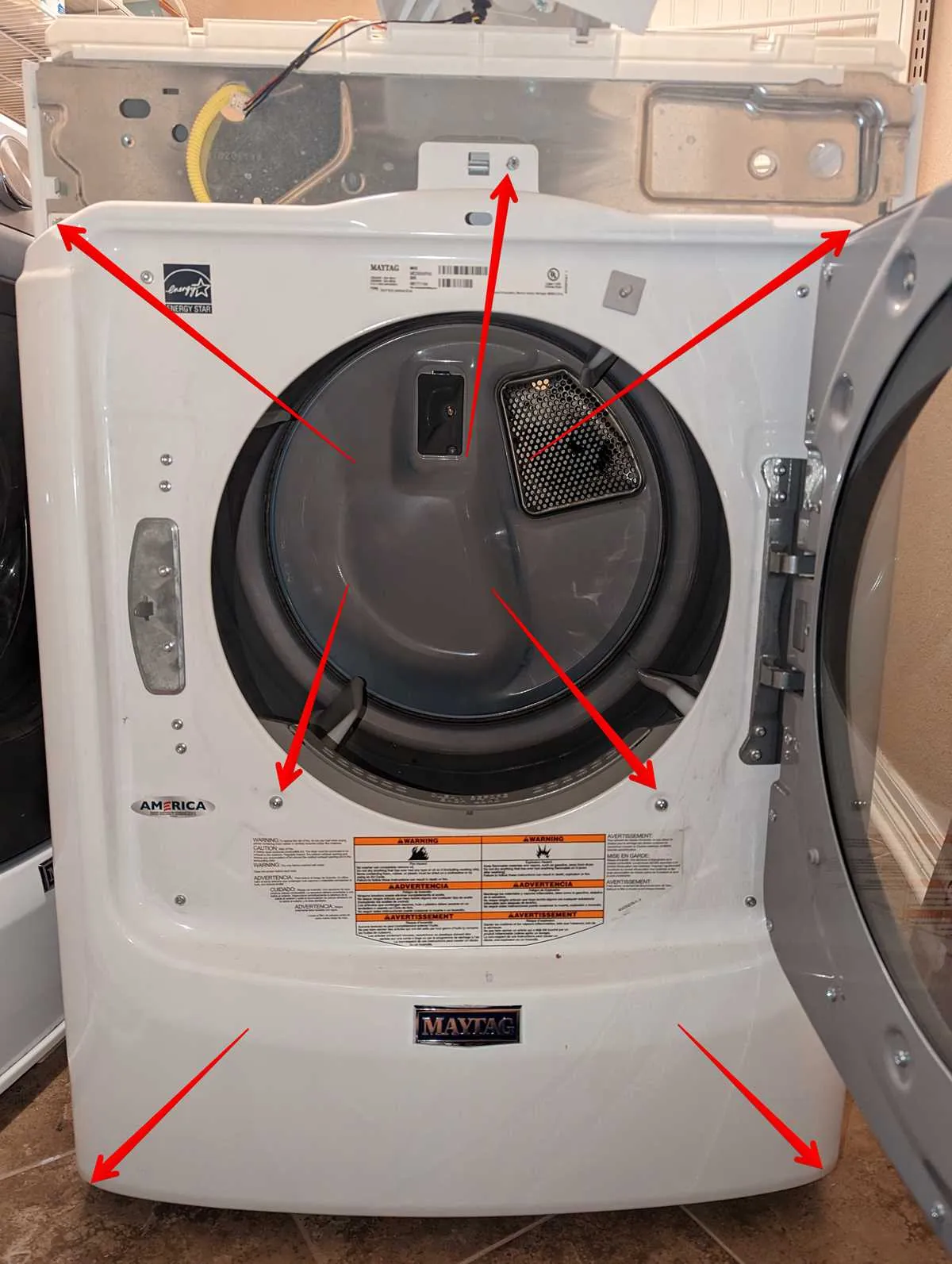

Start by unplugging the machine to ensure safety before handling internal components. Locate the access panel on the rear or front, depending on the model, and remove screws securing it. Carefully detach the panel to expose the internal drum mechanism.
Identify the worn or broken loop responsible for rotating the drum. Slide it off the motor pulley and the drum’s rim carefully to avoid damaging any surrounding parts. Before fitting the new loop, check the tensioner pulley and motor shaft for any signs of wear or debris that could affect operation.
Align the new strap precisely around the drum and motor pulley. Ensure it sits snugly in the groove to prevent slippage. Reassemble the access panel, secure all fasteners, and test the appliance by running a short cycle to verify proper function and sound.
Identifying and Removing the Drive Loop
Locate the appliance’s rear panel and unscrew it to access the internal mechanism. Inspect the large loop connecting the motor pulley to the rotating drum. Signs of damage include visible fraying, cracking, or loss of tension.
Before detaching, rotate the drum by hand to confirm looseness or slippage caused by the compromised loop. Release the tension by pushing the idler pulley away from the motor pulley, then carefully slip the loop off the pulleys.
Note the routing path of the loop around the drum and motor components for accurate installation afterward. Avoid forcing components to prevent damage to the tensioner or motor shaft during removal.

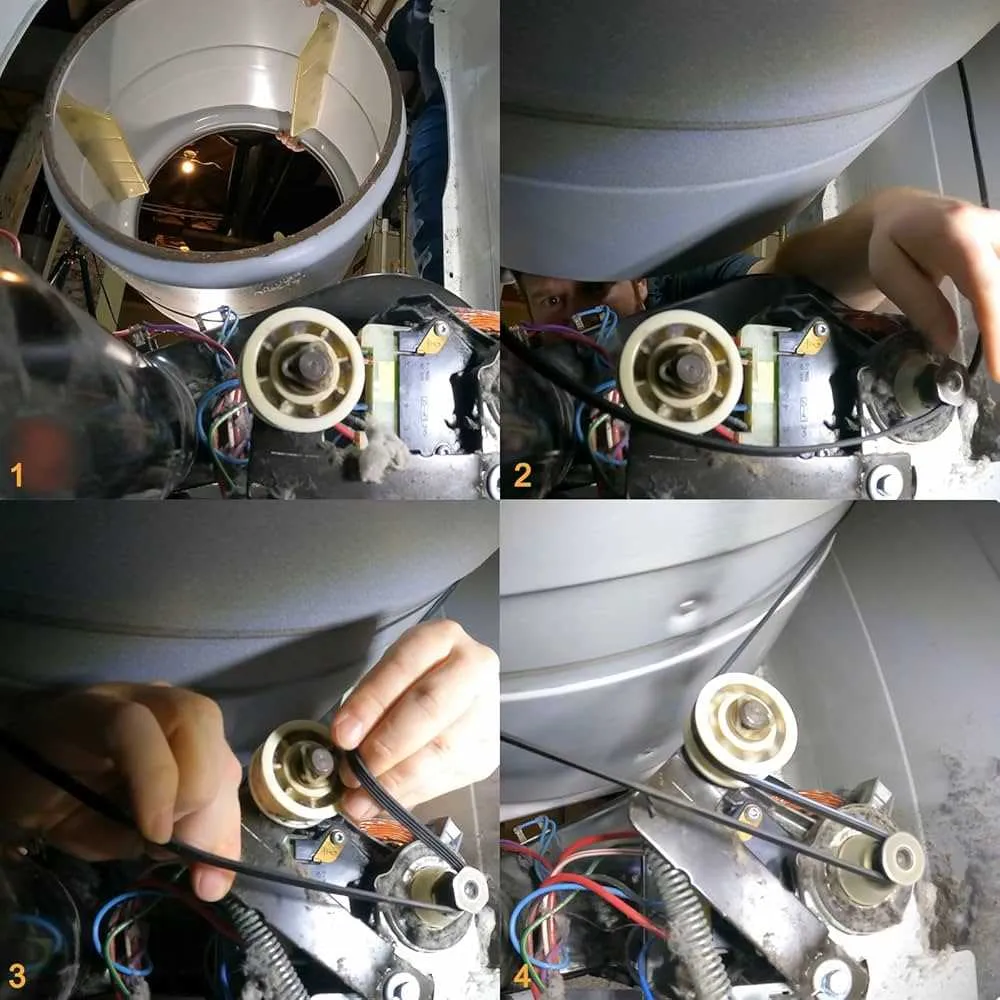

Routing the new belt around drum and motor pulley
Position the new loop firmly around the drum’s outer edge, ensuring the textured side faces inward to maintain grip. Align the smooth side against the pulley to reduce friction. Begin threading the strap under the motor pulley, looping it tightly so the tension spring stays engaged.
Verify the alignment by rotating the drum manually; the band should track evenly without slipping off. If misaligned, adjust the belt placement on the idler pulley arm before finalizing the installation. Confirm the tensioner applies adequate pressure to keep the loop taut but not overstretched, which could lead to premature wear.
Secure all fasteners and perform a slow spin test to check for smooth movement and correct tracking along all guiding components. Address any resistance or misrouting before completing reassembly.
Securing the Drive Loop and Testing Appliance Operation
Ensure the loop is properly aligned along the motor pulley and the rotating drum before fastening. The band must sit evenly within the grooves, avoiding any twists or slack. Tighten the tensioner carefully, verifying consistent pressure to prevent slipping during operation.
After assembly, rotate the drum manually to confirm smooth movement without obstruction. Reconnect the power source and run a short cycle, observing the drum’s rotation speed and sound for irregularities. If the motion appears uneven or noisy, immediately disconnect and inspect the assembly for misalignment or looseness.
Confirm the tension maintains stability throughout the test cycle, as improper securing can lead to premature wear or failure. Adjust the tensioning mechanism if necessary, then repeat the operational check to guarantee reliable function before finalizing the installation.
