Start by identifying the sweep hose assembly–it frequently clogs and is one of the most commonly replaced elements. Check the tail scrubber for wear and ensure the clamp ring holds the hose firmly in place. Replace any cracked or loose connectors to restore full function.
Wheel mechanisms demand close inspection. Each drive shaft should rotate smoothly without resistance. Look for signs of damage on the axle housing and examine the bearings for corrosion. A worn out gear train can impair navigation and reduce debris collection efficiency.
Focus on the turbine chamber next. If the propulsion is weak, inspect the impeller and surrounding seals. Debris buildup in this section often causes reduced water flow. Use the manufacturer’s exploded view to match O-rings, bushings, and retainer clips correctly when reassembling.
Don’t overlook the float and ballast system. An imbalance can cause the unit to tilt or get stuck. Confirm the buoyancy pod is sealed tightly and the internal foam hasn’t degraded. Replace any compromised flotation modules to maintain optimal positioning during operation.

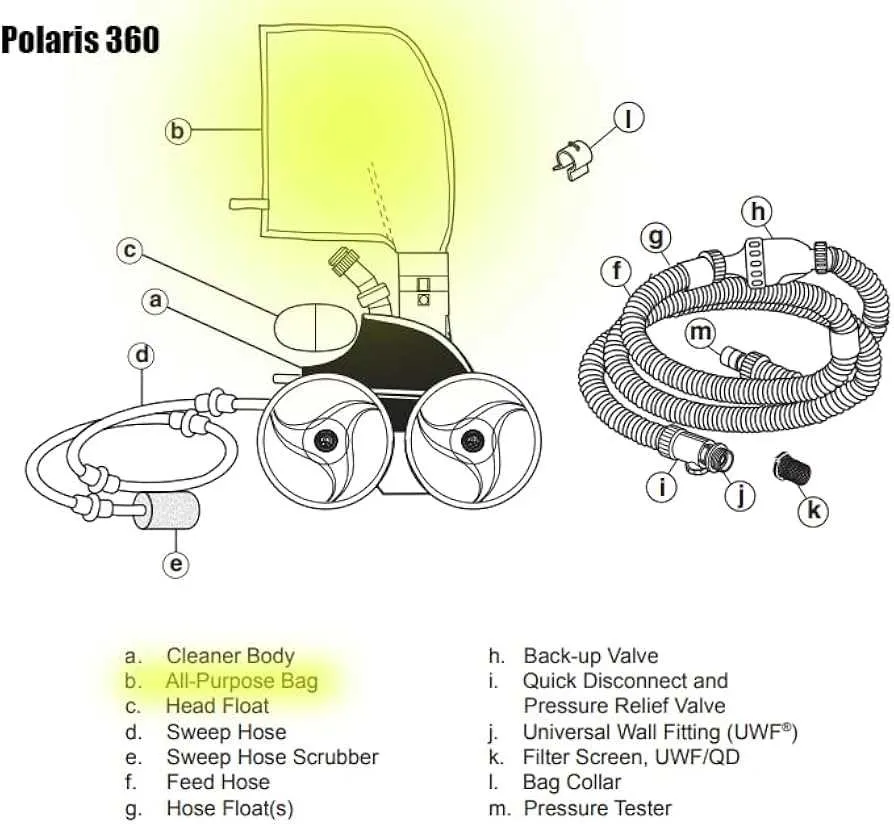

For a full rebuild or targeted maintenance, refer to an illustrated breakdown showing each component’s exact placement. This ensures precise identification of worn elements and prevents incorrect substitutions that might affect performance.
Component Breakdown and Replacement Guide
Start by locating the main drive mechanism, typically positioned near the rear axle housing. Check for wear on the gear assembly, especially the turbine bearings and shaft bushings. These often degrade first and cause erratic movement.
Next, inspect the vacuum inlet valve. If the suction is weak, the diaphragm or internal seals may be compromised. Replace with OEM-rated alternatives only to ensure compatibility with the internal manifold layout.
The float module, mounted above the central housing, must be properly calibrated. Over time, internal foam saturation can affect buoyancy. If the cleaner sinks or tilts, swap the module entirely rather than attempting temporary fixes.
For optimal water propulsion, verify the condition of the thrust jet nozzle. Any clogging or misalignment here reduces forward motion. Clean thoroughly or install a precision-fit replacement with the same jet angle specification.
Check the feed hose swivel joints for cracking or loss of rotation. These joints are crucial for maintaining fluid mobility and reducing line tangling. Replace any connector showing discoloration or excessive resistance.
Conclude with an inspection of the tail sweep assembly. If movement is restricted or inefficient, the internal flow restrictor may be blocked. Use a fine-bristle brush or replace the restrictor tube to restore oscillation.
How to Identify and Replace Hose Components
Begin by locating the feed line assembly connected to the return jet; this includes the leader tube, middle section, and backup valve. Inspect each segment for cracks, leaks, or stiffness.
- Detach the unit from the return line by twisting the quick disconnect counterclockwise.
- Lay out the tubing sections flat to identify any shortening or missing floatation collars.
- Measure each segment:
- Leader length: ~10 feet
- Center length: ~10 feet
- Feeder tube: ~10 feet
- Check for kinks near swivels; replace sections with impaired flexibility.
When replacing:
- Use only sections with integrated floats every 30 inches to maintain neutral buoyancy.
- Ensure swivels are oriented correctly to prevent tangling; they should rotate freely when installed.
- Apply silicone-based lubricant to O-rings before reconnecting for a watertight seal.
- Secure each junction with factory clamps to avoid detachment under pressure.
Test the system by submerging the hose and observing motion; improper flow indicates misalignment or blockage in one of the replaced elements.
Understanding the Function of Polaris 360 Internal Components
Begin troubleshooting by inspecting the turbine assembly–it converts water pressure into mechanical motion. If rotation is inconsistent or absent, check for worn bearings or blocked vanes within the housing.
Next, verify the integrity of the drive shaft. This element transmits energy from the turbine to the wheel mechanism. Fractures or misalignment can disrupt propulsion. Replace immediately if splines are stripped or bent.
Examine the gear train enclosed in the main chamber. These cogs synchronize movement across the device. Excessive noise or irregular movement signals stripped teeth or misaligned gears. Remove debris and apply waterproof lubricant as needed.
Focus on the sweep hose valve located near the rear outlet. It regulates water flow to the tail. A clogged or faulty valve results in ineffective sweeping action. Clear obstructions or install a replacement if rubber seals are damaged.
Inspect the float chamber’s air bladder. Loss of buoyancy often stems from punctures or internal leaks. Submerge in water and look for bubbles to identify compromised areas. Replace the bladder to restore neutral balance.
Finally, check internal check valves that prevent backflow. If water moves in reverse or stalls occur, clean or swap these valves to maintain directional control and suction efficiency.
Where to Find OEM and Compatible Polaris 360 Replacement Parts
InyoPools offers a comprehensive catalog of factory-original components, including internal gears, turbine assemblies, and hose kits. Their detailed inventory includes exploded views with part numbers, ensuring precise matching.
Leslie’s Pool Supplies stocks both authentic and aftermarket alternatives. Use their online lookup tool by entering the cleaner’s model number for an instant breakdown of available options, from wheel bearings to feed hoses.
ePoolSupply specializes in brand-specific replacements and third-party equivalents. They provide video tutorials and expert support for identifying compatible substitutes, especially for discontinued items like the old-style backup valve or float head.
Amazon and eBay are reliable for budget-friendly replicas. Filter results by manufacturer or OEM tag to avoid low-quality knockoffs. Read reviews focused on fit and durability, especially for wear items like sweep tails and thrust jets.
PoolZoom offers bundle kits, combining commonly replaced elements like the belt kit, axle block, and wheel screw set. Their warehouse-based model ensures faster shipping on in-stock items.
