For effective maintenance and quick troubleshooting, it’s crucial to familiarize yourself with the layout and function of each key element in your brushcutter. A clear visual reference can drastically reduce the time spent on repairs and help you identify worn-out or damaged pieces with ease.
Start by identifying the primary sections: the drive shaft, cutting head assembly, and engine block. These are typically the most involved parts when servicing or replacing components. Understanding their relationships and how they interconnect is vital for smooth operation.
Focus on the gear mechanism: a crucial part that often requires attention. The drive gear, often located near the shaft, can wear out after heavy use. If you notice any issues with performance, ensure the gear isn’t damaged or clogged with debris.
Next, inspect the fuel system: carburetor and air filters are common culprits behind poor engine performance. A clogged filter can cause inefficient fuel combustion, while a malfunctioning carburetor may result in starting issues. Regular maintenance and timely cleaning can prevent these issues from escalating.
Lastly, ensure that all fasteners and mounting points are secure. Loose components can lead to imbalances, which may cause vibrations, affecting not only performance but also longevity of your trimmer.
Key Components Breakdown
For optimal performance and efficient maintenance, understanding the key elements of a string trimmer is essential. Here is a detailed guide to its individual components and their specific functions:
- Engine Assembly: The core unit that drives the cutting mechanism. Make sure the spark plug is properly connected and the fuel filter is clean to ensure smooth operation.
- Cutting Head: This is responsible for trimming grass and other vegetation. Regular inspection of the line spool and cutting blade is crucial to prevent uneven cuts.
- Drive Shaft: Transfers power from the engine to the cutting head. Check for any wear or damage that may cause vibrations during use.
- Handlebar: Provides stability and control while operating the unit. Tighten the handlebar regularly to avoid any movement during use.
- Throttle Trigger: Regulates engine speed. Ensure it is responsive and free from debris that might hinder its function.
- Safety Guard: Protects the operator from flying debris. Inspect the guard for cracks or damage before each use.
- Fuel Tank: Holds the fuel mixture. Avoid running the machine dry to prevent engine damage.
- Air Filter: Prevents dirt and debris from entering the engine. A clean filter is essential for maximum efficiency.
- Starter Assembly: Engages the engine for initial ignition. Make sure the pull cord functions smoothly to avoid unnecessary strain during startup.
By regularly maintaining these components, you ensure a longer lifespan and more reliable performance of your machine. Always refer to the manufacturer’s manual for specific maintenance instructions and part replacement schedules.

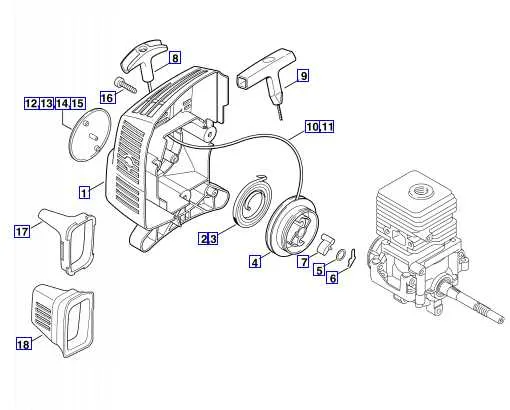

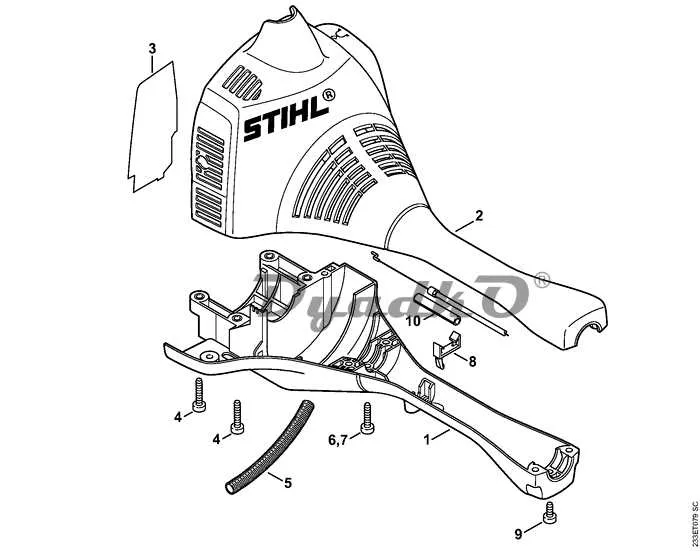

Identifying Key Components in the Stihl FS55 Diagram
When examining the breakdown of a string trimmer, focus on the engine assembly and the drive shaft. The engine assembly, which includes the ignition system, carburetor, and cylinder, is crucial for efficient performance. The drive shaft transmits power from the engine to the cutting head, and understanding its connection points and length ensures smooth operation.
Pay close attention to the gear head section. It houses the components responsible for rotational movement, allowing the trimmer line to spin effectively. The cutting head, often equipped with a spool or metal blade, is essential for trimming, and verifying the proper alignment of the head ensures safety and precision during use.
Examine the air filter, which prevents debris from entering the carburetor, affecting engine performance. A clogged filter can lead to inefficient operation, so regular maintenance or replacement is essential. Additionally, the fuel system, including fuel lines and the tank, should be checked for leaks and blockages that can disrupt fuel flow.
Lastly, the recoil starter mechanism is often overlooked but plays a vital role in starting the engine. Inspecting its components for wear and proper tension ensures quick and easy ignition, especially after long periods of disuse.
Step-by-Step Guide to Replacing Common Parts of Your Trimmer
1. Start by disconnecting the spark plug wire to ensure safety before performing any repairs.
2. Remove the cutting head by turning it counterclockwise. If it’s too tight, use a wrench or pliers to loosen it. Make sure to clean any debris around the shaft before proceeding.
3. For replacing the fuel filter, open the fuel tank cap. Carefully pull out the filter from the tank and replace it with a new one. Ensure it’s positioned correctly before sealing the tank again.
4. If the carburetor is malfunctioning, unscrew the mounting bolts and gently lift it off. Check the gasket for damage and replace it if necessary. Reattach the carburetor and ensure it’s secure.
5. To change the air filter, remove the cover by loosening the screws. Take out the old filter and insert the new one, making sure it fits snugly into place. Secure the cover tightly.
6. Replace the ignition coil by unscrewing it from the housing. Disconnect the wiring and install the new coil. Ensure the wiring is reconnected properly before reattaching the coil to the housing.
7. When replacing the spark plug, use a spark plug socket wrench to remove the old plug. Check the gap of the new spark plug and install it into the engine. Tighten it but avoid over-tightening.
8. For line replacement, remove the spool from the head and wind the new line into the spool according to the manufacturer’s recommended length. Reassemble the spool and secure it back onto the trimmer head.
9. After all parts are replaced, reattach the spark plug wire and perform a test run to ensure everything is functioning smoothly.
Troubleshooting Guide Using the Diagram for Your Trimmer
Start by identifying the root cause of the problem. If the trimmer fails to start, check the ignition coil and spark plug. Ensure the plug is clean, undamaged, and securely connected. If there’s no spark, replace the ignition coil, as it may be faulty.
If the engine sputters or stalls while running, inspect the fuel system. The fuel lines could be clogged, or the carburetor may need adjustment. Clean the carburetor and ensure the fuel filter is not obstructed. If the issue persists, consider replacing the fuel lines to prevent further issues.
For loss of power, examine the air filter. A clogged filter can restrict airflow, causing poor engine performance. Replace the filter if it’s dirty or damaged. Also, check for any exhaust blockages, as these can impede engine function.
In case of unusual vibrations, inspect the trimmer’s cutting head and drive shaft. A misaligned or damaged shaft can cause excessive vibration. Ensure that the shaft is properly lubricated and that the cutting head is securely attached. Any worn-out components should be replaced immediately to prevent further damage.
If the unit continues to overheat, check the cooling fins for debris. Clear away any build-up that might block airflow around the engine. Overheating can also be a sign of low-quality fuel, so always use the recommended fuel mixture.
For issues with starting or idling, verify the choke and throttle settings. Adjusting these components can often resolve starting problems. Additionally, ensure the muffler is not blocked, as this can affect idle stability and overall performance.
