To safely install a high-voltage system for your outdoor water system, ensure that all connections are properly secured and insulated. Begin by identifying the power source and confirming the voltage specifications of your electrical equipment. Use a reliable circuit breaker rated for the correct amperage to avoid overloading the system.
Connection to the power supply: Connect the live wire to the designated terminal on the equipment, and make sure that the ground wire is securely attached to the grounding point. Proper grounding is essential to prevent electrical hazards and ensure the safe operation of the system.
Wiring configuration: For optimal performance, use cables with sufficient current-carrying capacity. Choose wire sizes that match the equipment’s voltage and amperage needs, following the manufacturer’s guidelines. Always double-check connections before powering up the unit to avoid short circuits or malfunction.
After completing the setup, perform a functional test to confirm that the system operates smoothly. If you notice any irregularities, disconnect the power immediately and inspect the wiring for any loose connections or damaged insulation.
Electrical Connection Guide for High Voltage Water Circulators
Ensure the use of a properly rated circuit breaker, ideally 30-amp, to protect against overcurrent situations. A dedicated line with appropriate gauge wire, such as 10/2 or 12/2 copper, should be used to handle the current load safely.
Phase Identification: Connect the black wire to the live terminal, and the white wire to the neutral terminal. Ground the system with a green or bare wire, attached securely to the metal frame of the motor.
Power Supply: Make sure the incoming supply is compatible with the motor’s voltage rating, and verify proper grounding before making any connections. It is crucial to check continuity using a multimeter after installation.
Ensure tight connections and secure insulation at every junction to prevent potential hazards. Always use weather-resistant materials when installing outdoors to avoid damage from environmental factors.
Understanding the Power Requirements for a 220v Pool Pump
Ensure your system operates efficiently by using a dedicated circuit with proper amperage. For most high-power equipment, a 30-amp breaker should be sufficient to handle the load. Verify the power consumption of the motor, typically indicated in horsepower, and choose a breaker rated for 1.5 times that value to prevent overloads.
Confirm that the gauge of the wire is appropriate for the current draw. For a 30-amp circuit, use 10 AWG copper wire, but for longer distances, consider stepping up to 8 AWG to compensate for voltage drop.
Always connect the system to a grounded outlet to ensure safety and prevent damage to the components. Additionally, an isolation switch should be included for emergency shutdowns, placed within sight of the equipment. Follow local electrical codes and always consult with a licensed professional to guarantee compliance and safety.

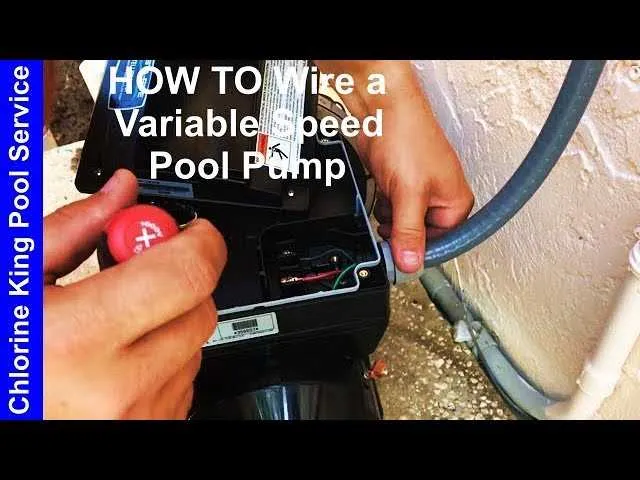

Step-by-Step Guide to Connecting a High Voltage Water Circulation System
Follow these precise steps to safely connect your system:
- Ensure Power is Off: Before beginning, switch off the electrical supply to avoid any accidents.
- Install a Dedicated Circuit: Set up a circuit breaker with appropriate amperage for your system’s requirements.
- Prepare the Electrical Box: Install a weatherproof electrical box near the location for easy access to the connections.
- Connect the Ground Wire: Attach the ground wire securely to the grounding terminal in the box, ensuring a solid connection.
- Wire the Main Line: Use an insulated wire to connect the main power input to the system’s terminal block. Ensure proper insulation to prevent short circuits.
- Secure the Neutral and Live Wires: Connect the neutral wire to the neutral terminal, and the live wire to the live terminal, tightening the connections firmly.
- Test for Continuity: Check the electrical connections with a multimeter to ensure there are no open circuits or faults.
- Final Check: Double-check all wiring for secure connections, and verify that the circuit breaker matches the system’s electrical load requirements.
Once these steps are complete, restore power and run a system test to ensure everything functions as expected.
Troubleshooting Common Electrical Issues in Water Circulation Systems
If the system fails to operate properly, check the power supply first. Ensure that the circuit breaker is not tripped and the electrical connection is intact. Inspect the fuse or circuit breaker for any signs of damage.
Examine the connections at the motor terminals. Loose connections can cause intermittent operation or complete failure. Tighten any loose wires and ensure proper insulation to prevent short circuits.
For systems that won’t start, test the start capacitor. A faulty capacitor can prevent the motor from engaging. Use a multimeter to check its functionality and replace if necessary.
Inspect the motor windings for signs of wear or burns. Any damaged windings should be replaced immediately to avoid further complications and ensure the unit runs efficiently.
| Issue | Possible Cause | Solution |
|---|---|---|
| Motor not starting | Faulty capacitor | Replace the start capacitor |
| Intermittent operation | Loose connections | Tighten and insulate connections |
| Burning smell or noise | Damaged motor windings | Replace the motor or winding |
| No power | Tripped circuit breaker | Reset or replace circuit breaker |
Regular maintenance, including inspecting for corrosion on terminals and ensuring that connections are secure, is key to avoiding common issues in electrical systems.
