50s Wiring Diagram for Les Paul with Detailed Layout and Tone Control Explanation

50s wiring diagram les paul

Choose the old-school tone control layout where the tone cap connects directly to the input lug of the volume pot. This configuration retains high frequencies more effectively when rolling down the volume, preserving clarity and articulation–especially useful for dynamic playing and low-gain settings.

Use 500k audio taper pots for both volume and tone. Capacitors should be 0.022µF for humbuckers, offering a balanced high-end roll-off. Connect the capacitor between the middle lug and ground on the tone control. The output lug of the volume control should feed the selector switch, not the tone pot, to maintain treble integrity.

For the bridge and neck pickups, ground the third lug of each volume pot. This prevents unwanted interaction between controls when both pickups are active. Avoid modern coupling schemes that route the capacitor from the third volume lug to the tone circuit–this results in noticeable treble loss at lower volumes.

Use braided shield wire or vintage-style cloth push-back wire for authenticity and minimal signal degradation. Ensure proper grounding with a star ground layout to eliminate hum. The tonal benefits of this traditional circuit are most apparent when adjusting volume on-the-fly during performance.

Optimal Vintage-Style Circuit Setup for Dual-Humbucker Guitars

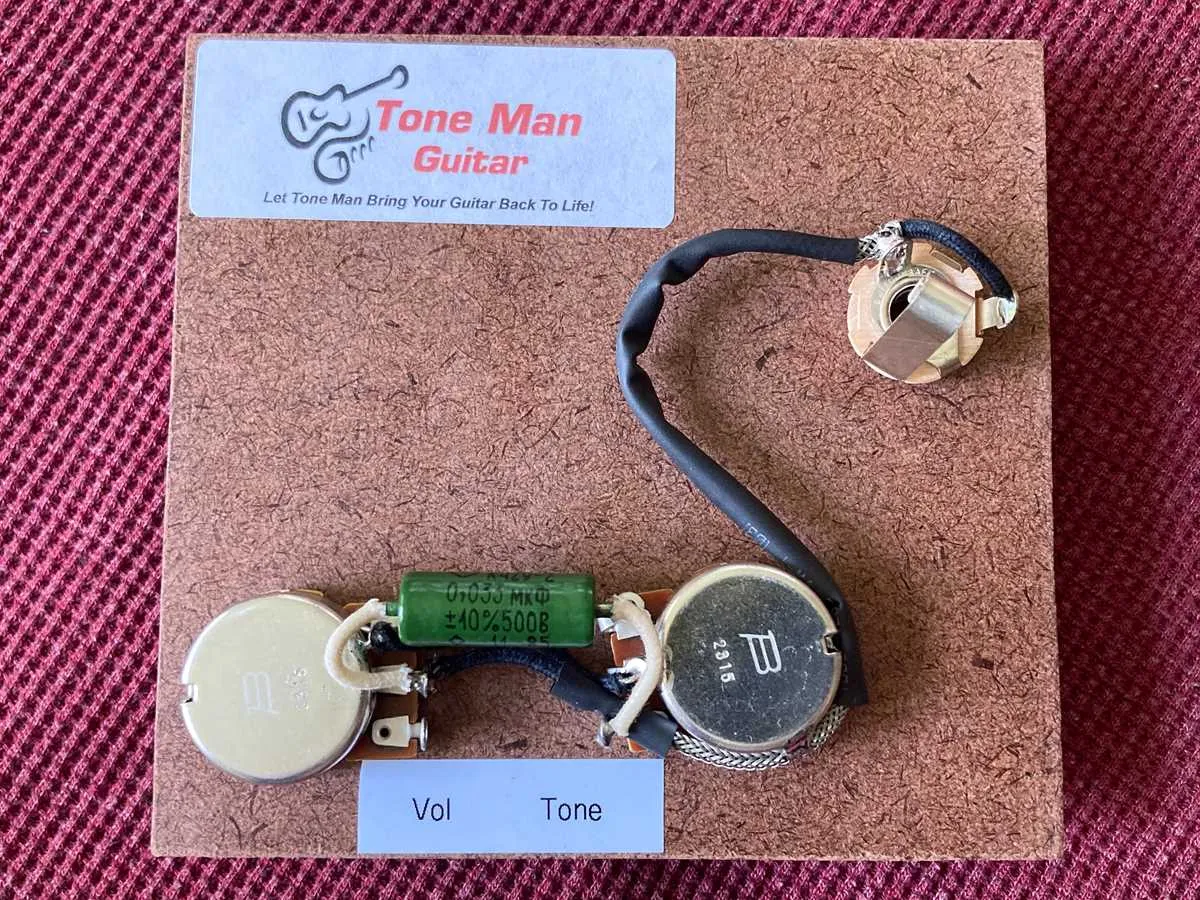

Use 0.022μF paper-in-oil capacitors paired with audio taper 500k pots to achieve authentic mid-century tonal response. Solder the tone cap between the tone control’s middle lug and outer ground lug. Connect the volume pot’s input lug to the switch output, and the pickup hot lead to the volume pot’s output lug.

For proper treble retention, ensure the tone control is linked to the volume pot’s output lug rather than the input. Ground all pot cases together and run a solid ground wire to the output jack. Keep wire lengths short to reduce capacitance and preserve clarity.

This layout offers smoother high-end roll-off, dynamic response, and stronger interaction between controls. Avoid modern configurations that tie the tone circuit to the input lug, as they cause treble loss when rolling down the volume.

How to Identify Original 50s Les Paul Wiring Components

Start by inspecting the potentiometers: authentic units from the era typically use Centralab 500k audio taper pots with date codes in the format “134XXYY”, where “134” stands for Centralab, “XX” the year, and “YY” the week. Values should measure close to 500k ohms with a smooth logarithmic taper.

Check the capacitors next. Genuine Bumblebee caps are black with colored stripes, encased in plastic, and usually marked with values like “.022μF 400V.” Avoid modern replicas with printed labels or incorrect color bands. Authentic components will often show aging but maintain solid readings near their rated capacitance.

Observe solder joints. Factory-original units have clean, minimal solder with no excess flux or rework marks. Any signs of disturbed connections or shiny, fresh solder indicate tampering or replacement.

Examine switchcraft toggles. Originals use a short frame with brass contacts and a flat top tip. Plastic nut threads or long-frame switches suggest later modifications.

Trace cloth-covered push-back wire. True mid-century builds use black and white cloth wire with tinned ends, not PVC or modern replicas. Consistent wear, oxidized tinned leads, and fraying cloth can confirm authenticity.

Cross-reference serial numbers and component codes with manufacturing dates to verify if electronics align with the instrument’s production period.

Step-by-Step Guide to Rewiring a Les Paul with 50s Wiring

Start by removing the backplate and carefully desoldering the existing connections. Take note of the current layout or photograph it for reference.

  1. Disconnect the tone capacitor from the middle lug of the volume control. Leave the other end connected to the tone potentiometer.
  2. Resolder the free end of the capacitor to the output lug of the volume control (the same lug that connects to the switch). This alters the tone roll-off interaction and preserves high frequencies when reducing volume.
  3. Ensure the ground connections are solid. Use a multimeter to check continuity between all grounded components, especially the backs of potentiometers and the bridge ground wire.
  4. Inspect the output jack and selector switch. Clean or resolder joints as necessary to ensure a clean signal path.
  5. Use shielded wire for longer signal runs to minimize interference. Keep wire lengths short and avoid overlapping signal and ground paths to reduce noise.
  6. Reinstall the cover and test with an amplifier. Check volume and tone interaction on both pickups to confirm correct behavior.

For accurate pot values, use an ohmmeter: 500k audio taper is standard, with a 0.022µF capacitor for a warm treble roll-off. Push-back cloth wire is recommended for vintage accuracy and ease of use.

Troubleshooting Tone and Volume Issues After Vintage-Style Circuit Upgrade

Check the capacitor orientation first. If the tone control behaves like a volume knob or kills all high frequencies instantly, reverse the capacitor’s leads. Many vintage capacitors are non-polarized, but inconsistent grounding or shielding can still cause interaction issues.

Next, verify pot values. Use a multimeter to confirm actual resistance–some labeled 500k units may read as low as 420k, affecting brightness and taper. For a brighter output, choose pots closer to 550k.

Inspect the output jack and ground solder joints. Cold or cracked joints at the jack or volume pot’s ground lug often result in signal loss, weak output, or intermittent tone behavior.

Measure voltage loss across the volume pot. If signal drops dramatically at low settings, the issue may be a non-audio taper pot. Ensure you’re using logarithmic (audio taper) types for both volume and tone controls.

Evaluate pickup selector function. If one position causes loss of treble or mismatched output levels, verify proper hot and ground connections. Miswiring at the toggle can introduce phase or blending issues.

Symptom Cause Solution
Tone control cuts volume Incorrect capacitor lead placement Swap capacitor legs between tone pot and output
Loss of high frequencies Low-value volume pot Use pots reading closer to 550k
Volume drop at low knob settings Linear taper pot Replace with audio taper version
No output in one switch position Pickup leads reversed or shorted Resolder hot and ground connections properly
Intermittent signal Cold ground joint Reflow solder and test continuity
