To ensure optimal water removal, position the pipe at a slight slope of about 1/4 inch per foot toward the exit point. This incline prevents water from pooling and promotes efficient drainage. Use durable materials for the piping, such as PVC or ABS, to avoid corrosion and extend the system’s lifespan.
Key Considerations: When placing the outlet, consider the surrounding structure. The height of the fixture should align with the adjacent floor and wall components. Avoid positioning it too close to walls or other plumbing to facilitate easy access for maintenance or potential repairs.

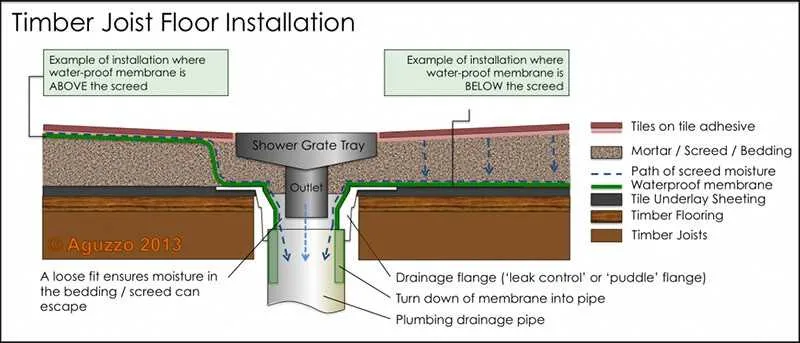

Proper sealing is crucial for preventing leaks. Use a reliable waterproof adhesive or silicone around the fixture to create a tight seal. Make sure that the surrounding floor is prepped for proper bonding to ensure no gaps remain where water could escape.
Maintenance Tip: Regularly check for clogs and clean the water exit point to maintain consistent performance. Keeping the flow unobstructed will prevent build-up and ensure longevity of the entire system.
Effective Setup for Water Disposal System

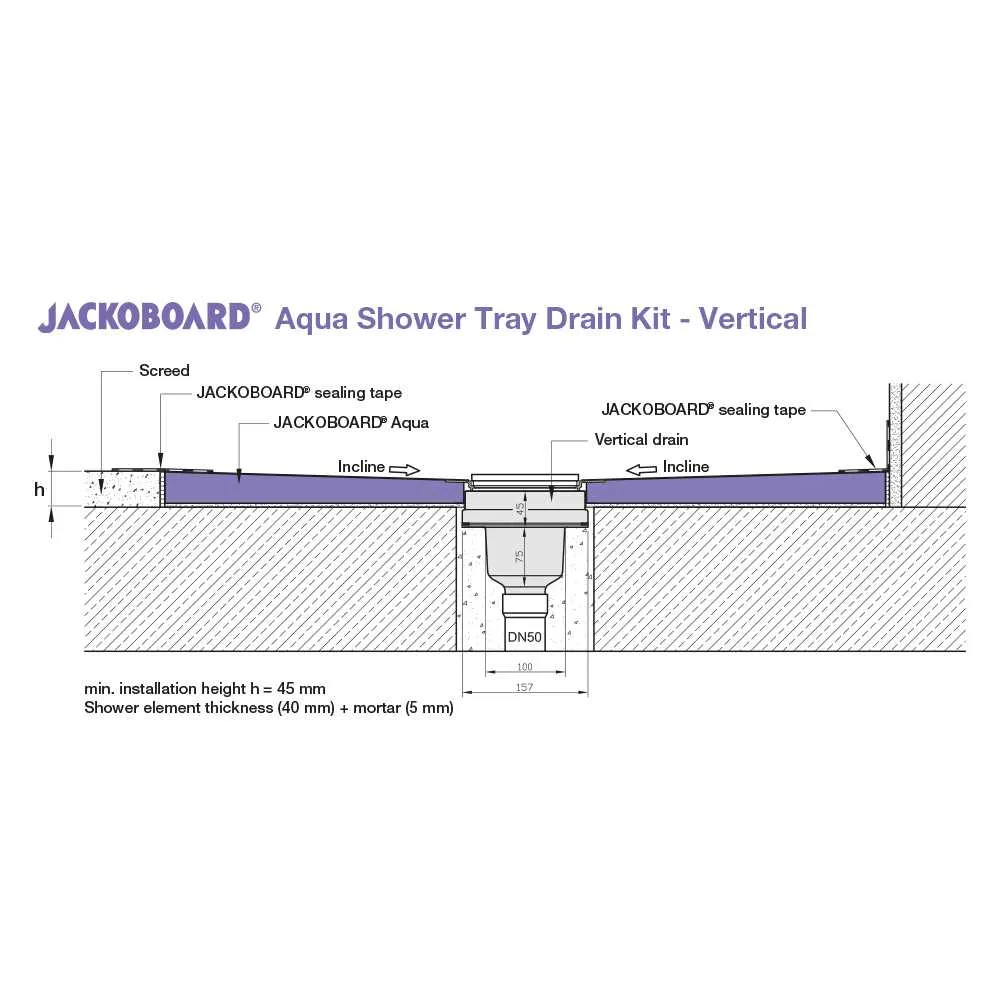

Ensure the slope of the base is at least 1/4 inch per foot towards the collection point for optimal water flow. This helps prevent pooling and ensures quick drainage. The vertical pipe should be properly secured to avoid shifting, as this can lead to leaks over time.
Place the connection point at the lowest end of the area, ensuring it’s well below the surrounding floor level. This ensures that water flows naturally toward the exit pipe. For proper sealing, use a high-quality waterproof adhesive around the joints and connections.
Check the pipe size to match the water volume expected. Typically, a 2-inch diameter pipe is sufficient for most setups, but for larger areas, you may need a wider diameter to prevent clogs.
Before covering the system with tiles or other materials, test for leaks. Run water through the system and check for any weak points where leakage may occur. Use a water-resistant grout or sealant along the edges for extra protection against moisture infiltration.
Choosing the Right Location for Water Outlet
Positioning the outlet near the center ensures even water flow and minimizes pooling. Placing it too far to one side can lead to inefficient water removal and possible stagnation. Centered placement promotes optimal drainage by utilizing gravity effectively.
Consider the room’s layout and water flow direction. Place the outlet away from walls or fixtures to prevent blockages and ensure unobstructed flow. Aim for a minimum distance of 12 inches from any fixed elements to allow for proper water movement and maintenance access.
Floor slope plays a crucial role in directing water to the outlet. Ensure the surface slopes uniformly towards the chosen spot to avoid uneven drainage. A slight slope of 1/4 inch per foot is ideal for optimal water direction without compromising comfort.
Step-by-Step Drain Setup Process
Start by ensuring the floor is level before proceeding with the setup. A sloped surface is essential for proper water flow.
Follow these steps for optimal placement:
- Prepare the base: Clear the area where the water collection system will be placed. Check for any obstructions that could disrupt the flow.
- Measure and mark: Position the system carefully, marking the exact spot for the connection. Ensure the point aligns with the pipe system for efficient water movement.
- Cut the necessary pipes: Measure and cut pipes based on the size of the hole and system requirements. Use a pipe cutter to achieve clean, precise cuts.
- Connect components: Use the appropriate adapters and fittings to securely attach the piping to the system. Ensure all seals are tight to avoid leaks.
- Secure the assembly: Firmly secure all components to the base to prevent any shifting during use. Check the alignment to make sure the flow direction is accurate.
- Test the flow: Run water through the system to verify the setup works as intended. Ensure water moves freely without any blockages.
Once all steps are complete, finalize by sealing any exposed edges or joints to protect against water damage.
Connecting the Drain to Plumbing System
Ensure a tight and secure connection between the outlet and the waste pipes by using a PVC or ABS pipe that matches the diameter of the outlet fitting. A 2-inch diameter is typical for most bathroom systems, but always verify based on the model specifications. Install a trap directly under the exit point, maintaining a consistent slope of 1/4 inch per foot to allow for proper water flow.
Use solvent cement to bond the pipes and fittings. Apply the cement evenly to both the inside of the fitting and the outside of the pipe. Hold the connection firmly for 30 seconds to ensure a secure seal. If using threaded fittings, tighten them by hand and then another 1/4 turn with a wrench to avoid over-tightening, which could cause cracking.
Verify that the system is aligned and free of any leaks by running water through the pipes before completing the surrounding finishes. If leaks are present, disassemble the connections and inspect for cracks or improper application of solvent cement. Replace any damaged parts immediately.
