To evaluate how materials respond to applied forces, it’s crucial to examine their deformation characteristics and how they resist changes in shape under stress. The process can be plotted to show the relationship between force applied and resulting displacement. This curve helps engineers predict how a material will behave when subjected to varying loads.
When analyzing common construction materials, such as alloys used in buildings and machinery, one can observe a specific progression from elastic deformation, where the material returns to its original form, to plastic deformation, where permanent changes occur. These two stages are critical in determining a material’s ability to bear weight without failing.
Elastic region represents the phase where a material can return to its original state once the load is removed. In contrast, plastic deformation indicates the onset of permanent changes. It’s vital to accurately identify the transition between these phases to ensure safe usage in engineering applications.

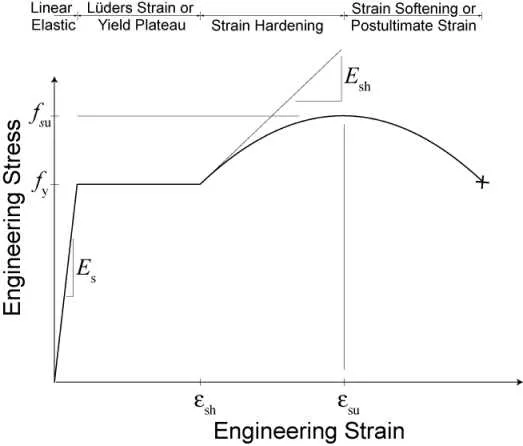

Deformation Curve Analysis of Metal

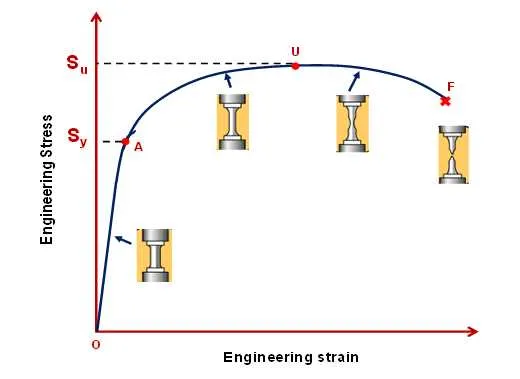

To accurately interpret the performance of a material under load, focus on its ability to withstand various forces without failure. When analyzing metal behavior, key phases to consider include:
- Elastic Region: The material exhibits reversible deformation. During this phase, the applied force is proportional to the deformation.
- Plastic Region: Permanent deformation occurs, and the material does not return to its original shape after the load is removed.
- Ultimate Strength: The peak point, where the material reaches its maximum ability to carry additional load before failing.
- Fracture Point: The stage where the material breaks due to excessive deformation and applied force.
When testing, it is essential to monitor the transition between these phases and identify key characteristics such as:
- Elastic Modulus: Indicates the stiffness of the material, important for structural integrity.
- Yield Strength: The point where permanent deformation begins, marking a critical threshold for design purposes.
- Ultimate Load: The highest force the material can bear before failure occurs.
For precise material selection and structural planning, carefully consider these transitions and thresholds in the design process to ensure safety and efficiency under expected operational conditions.
Understanding Yield Point and Its Importance in Design
Ensure that the material’s yield point is well above the expected operating forces to prevent permanent deformation. This limit marks the transition from elastic to plastic behavior, crucial for structural integrity. In engineering design, it’s essential to choose materials that provide a significant safety margin, ensuring that components remain within the elastic range under typical loads.
Utilizing a material with a higher yield strength reduces the risk of failure during service. For example, choosing a metal with a higher yield limit allows for lighter and more compact designs without compromising durability. Pay particular attention to the impact of temperature, processing methods, and strain rates, as these factors can lower the yield threshold in certain cases.
In applications where high precision is required, such as aerospace or medical devices, understanding this limit is critical. Materials should be selected not only for their strength but also for their ability to withstand long-term use without entering the plastic region. Testing the yield point under different conditions helps in predicting how the material will perform throughout its life cycle.
Impact of Temperature on Material Behavior
Increasing temperature leads to a noticeable reduction in material stiffness and strength. At elevated temperatures, materials exhibit enhanced plasticity, causing more deformation under load before fracture. Below 300°C, minimal effects on mechanical properties are observed, but beyond this range, significant weakening occurs. Above 700°C, a considerable decrease in yield capacity is common, especially in carbon-based alloys.
The ductility of the material improves with temperature rise, allowing greater deformation without failure. However, temperatures over 1000°C can lead to rapid softening, affecting load-bearing performance. At this point, tensile strength declines sharply, making the material unsuitable for structural applications without further heat treatments.
To maintain structural integrity in high-temperature environments, selecting alloys designed for thermal stability is crucial. For example, alloys with high chromium content or those that undergo specific heat treatment can retain their mechanical properties better than standard carbon steels.

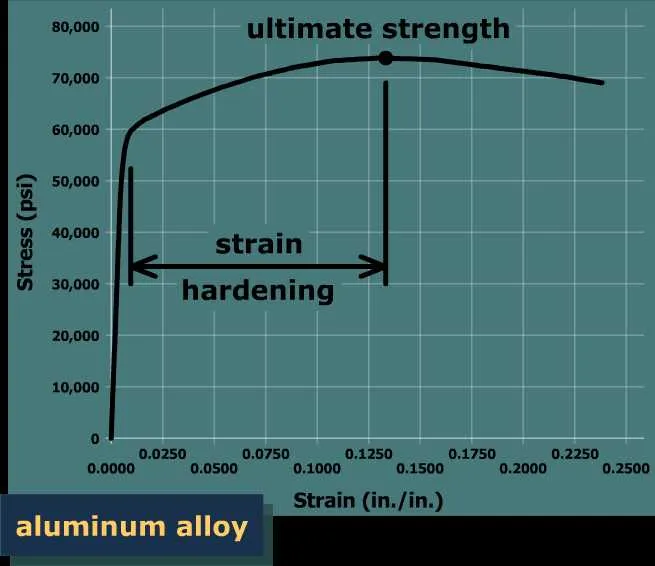

How to Interpret Ultimate Tensile Strength in Real-World Applications
Ultimate tensile strength (UTS) plays a crucial role in determining material durability under extreme loads. In practice, materials with higher UTS are selected for applications where resistance to fracture is critical, such as in aerospace components or high-pressure pipelines. When evaluating a material’s suitability, ensure that UTS exceeds the maximum expected load, with a safety margin considered. For example, if a component is subjected to 500 MPa in service, choosing a material with a UTS of at least 650 MPa provides a safeguard against failure due to unexpected load spikes.
In construction, UTS helps predict how materials will behave under long-term stresses. For beams and columns, materials with high UTS provide the required strength to withstand both static and dynamic forces without breaking. It’s important to note that UTS alone isn’t enough; other factors, such as elongation and toughness, must be considered to ensure that materials also perform well under variable conditions, such as temperature fluctuations or impact forces.
In manufacturing, UTS assists in selecting alloys for machinery and equipment that will experience high mechanical stress. For instance, in automotive applications, choosing metals with an appropriate UTS guarantees that the parts can endure repeated loading without deforming permanently. Similarly, for high-performance tools and cutting equipment, materials with superior tensile strength are vital to prevent wear and tear during operation.
When testing UTS, always compare the values obtained from standardized tests with the operational requirements of the final product. The material’s performance at ultimate load is not just about breaking points; it also reflects the potential for safe, efficient, and durable design in real-world environments.
