Ensure proper safety measures when dealing with the electrical connections of your home’s heating system. Begin by identifying the main power source, which must be connected securely to avoid risks of overheating or short circuits. Use a dedicated circuit with the correct voltage rating for the unit in question. For most systems, a 240V connection is typical, but always verify the exact requirement from the manufacturer’s specifications.
The primary terminals of the unit should be connected to the power line, typically using two live wires, marked as L1 and L2, along with a ground wire. The ground wire should be connected to a stable, unpainted metal part of the unit for optimal safety. Pay attention to the color codes and adhere to your local regulations to ensure a secure and compliant installation.
If you’re integrating a temperature control unit, ensure that the sensor is wired to the designated input terminals, usually located on the control panel. The switching mechanism should be rated for the system’s load and capable of handling the switching current without failure. Always double-check that all connections are tight, as loose terminals can lead to arcing or system failure over time.
Electrical Connections for a Hot Water System
Ensure correct circuit configuration: The power supply should be connected to a dedicated circuit breaker with a rating that matches the device’s specifications. Typically, this will require a 15-20 amp circuit for smaller models and up to 30 amps for larger units.
Phase wiring: For systems with a single-phase connection, connect the live wire to the input terminal and the neutral wire to the return terminal. For three-phase systems, each terminal should be connected to its respective phase wire to balance the load evenly.
Grounding: Proper grounding is essential for safety. Attach the ground wire to the terminal marked with a grounding symbol, ensuring all metallic parts are effectively earthed.
Important connections: The heating element terminals should be connected with insulated wires rated for the required voltage and current. Use high-quality, heat-resistant wires to avoid degradation over time.
Temperature sensor placement: The sensor should be positioned in a way that allows accurate monitoring of water temperature. It typically connects to the control panel to regulate the device’s on/off cycles based on the set temperature.
Control panel integration: Connect the control system to the power supply, ensuring all connections are secure and that the control panel is positioned for easy access and operation. It should manage the flow of electricity to the heating element based on the user’s temperature settings.
Voltage rating: Always check the voltage rating of your device to avoid overloading the system. Most models operate on 120V or 240V, depending on regional standards and installation type.
Understanding the Power Supply Connections for Water Heaters
Ensure the correct power supply is provided to the unit for optimal performance and safety. Here’s how to manage power connections:

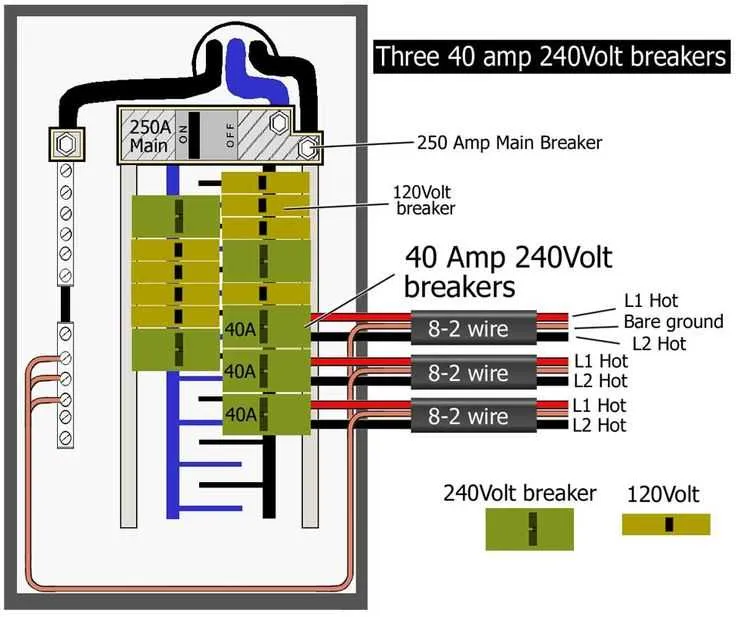

- Use a dedicated circuit for the unit, typically 240V AC for most residential systems.
- Install an appropriate circuit breaker, usually rated at 30A for proper overload protection.
- Verify that all wiring is rated for the required voltage and current to prevent overheating.
- Check that the live, neutral, and ground connections are properly established before activation.
Follow these additional guidelines for safe installation:
- Ensure proper grounding of the unit to prevent electrical shocks. Use a grounding conductor connected to the ground terminal of the unit.
- Wire the live and neutral conductors in accordance with local electrical codes, avoiding the use of undersized cables.
- Before connecting to the power supply, confirm that all connections are tight and insulated to avoid short circuits.
- Consider using a timer or a thermostat for energy-efficient operation and to prevent overheating.
Always double-check connections and seek professional assistance if needed. Prioritize safety by following local regulations and using high-quality materials for installation.

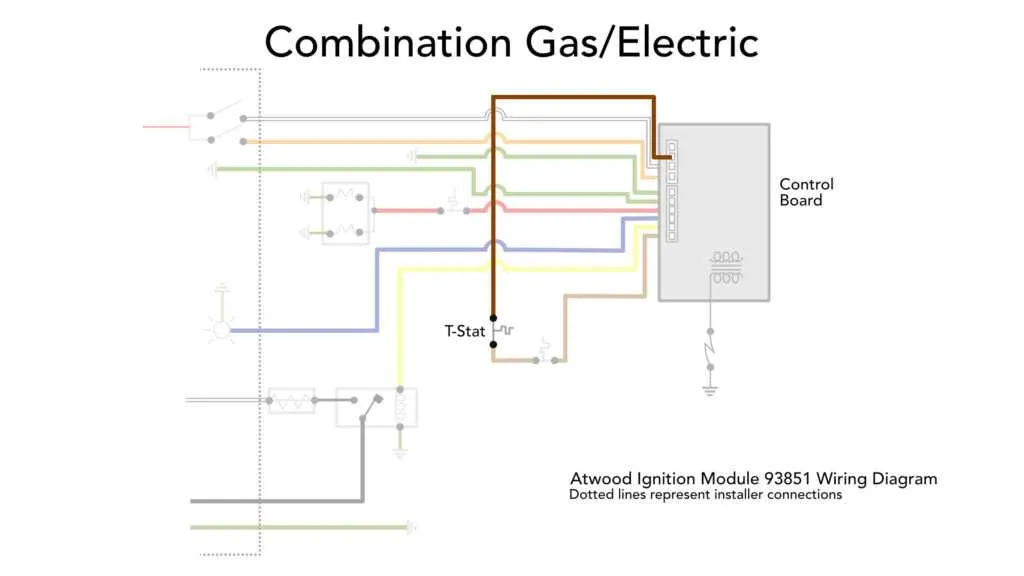

How to Wire the Thermostat and Heating Element
Begin by ensuring the power is off. Connect the thermostat’s live terminal to the live wire from the power source. Secure the neutral terminal of the thermostat to the neutral wire. The heating element should be attached to the thermostat’s output terminals: one terminal to the live wire and the other to the neutral wire, depending on the specific system. Verify all connections are tight and secure. For optimal safety, use wire nuts or other approved connectors to prevent loose connections.
Ensure the thermostat is set to control the correct temperature range. Double-check that the heating element is properly grounded to avoid electrical hazards. If a relay or contactor is used, make sure it is rated for the power the element requires and wired according to the manufacturer’s specifications.
After confirming all connections, test the system by turning on the power briefly to ensure proper function. If the system does not operate as expected, recheck the connections and thermostat settings for possible errors.
Safety Precautions for Connecting a Heating Unit
Ensure power is turned off at the circuit breaker before beginning any installation. Never rely on just switching off the device; double-check using a voltage tester to confirm there is no electrical current.
Use appropriate wire gauge according to the manufacturer’s instructions. Insufficiently rated cables can lead to overheating and increase the risk of fire or equipment failure. Always check the amperage and voltage requirements.
Ground the system properly to avoid electrocution risks. Ensure a dedicated grounding conductor is connected to the system’s metal parts, especially for units with exposed metal surfaces.
Follow local electrical codes and regulations. These standards are designed to minimize hazards related to electrical systems and ensure your setup is compliant and safe.
Check for proper insulation around cables. Any exposed or damaged insulation can lead to short circuits or fires. Ensure all wires are securely covered, especially in damp areas.
Use a qualified electrician for installations. If you’re unsure about the process or the safety of your setup, it is always safer to consult or hire a professional. Improper installation can cause severe injury or property damage.
Test the system after installation before full use. Verify that all connections are secure, and ensure that there is no overheating or unusual behavior in the unit during its initial run.
