For a secure 30A connection to your RV, ensure you use the correct wire gauge and a proper circuit breaker. The recommended wire size for this setup is 10 AWG, which will safely handle the required current. Always confirm the breaker rating aligns with your system’s needs, using a 30A breaker for this specific installation.

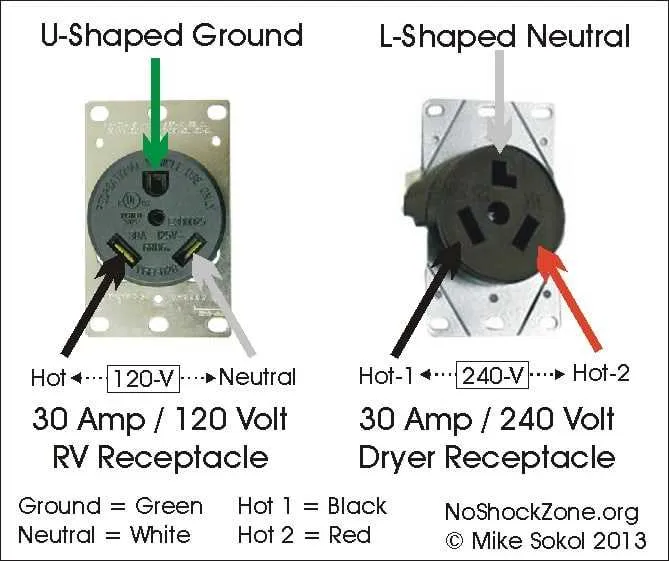

The hot wire should be connected to the brass terminal, while the neutral wire attaches to the silver terminal. The ground wire goes to the green terminal, ensuring a solid earth connection for safety. Ensure all connections are tight to prevent any risk of electrical faults.
Double-check the voltage before any connection. The setup should be capable of handling 120 volts, which is standard for most RV electrical systems. If any modification is required, consider consulting with an electrician to maintain compliance with local electrical codes.
Electrical Connection for 30-Amp RV Power Supply
Ensure proper installation by using a dedicated 30-amp circuit breaker and a compatible 3-prong receptacle. The red wire should connect to the hot terminal, the white wire to the neutral terminal, and the green wire to the ground terminal. Use appropriate wire gauge (10/3 or similar) to handle the load without overheating. Double-check that all connections are secure and insulated to prevent short circuits.
Verify that the breaker matches the wiring capacity to prevent overload. It’s crucial that the grounding system is well-established to avoid electrical hazards. For safety, always confirm that the power supply is turned off before working with electrical components. Adhere to the National Electrical Code (NEC) standards to ensure compliance and reliability.
When positioning the power source, keep the cables away from high-heat areas or places that could cause wear over time. Consider using a surge protector between your RV and the external power supply for added safety against voltage spikes.
Understanding the Components of a 30 Amp RV Power Connection
When setting up a 30-amp RV electrical connection, it is crucial to ensure the correct components are used to avoid malfunctions or safety hazards. The primary elements to focus on are the receptacle, circuit breaker, wire gauge, and grounding system.
The receptacle must match the RV’s power requirements, typically featuring three prongs: two for the hot wires and one for grounding. Ensure the wire gauge is appropriately sized, typically 10 AWG for safe transmission of current. Using a wire that’s too thin could lead to overheating and electrical fires.
The circuit breaker should be rated correctly to protect against overloads. It is often advisable to use a breaker that matches the RV’s total power consumption. Additionally, grounding is vital for safety; without a proper ground connection, the system could become a shock hazard. Regularly inspect the grounding to prevent electrical faults.
Lastly, ensure that the connections are clean and secure, preventing any loose contacts that can cause voltage drops or short circuits. Tighten all connections using proper torque specifications to maintain safe operation.
Step-by-Step Guide to Installing a 30-Amp RV Power Connection
Start by turning off the main power supply at the breaker box. Confirm that no electricity is flowing to the circuit where you’ll be working. Always use a voltage tester to double-check before proceeding.
Choose a location for the power box that’s easily accessible and close to your RV’s power input. Install a weatherproof enclosure that can safely house the necessary components and prevent moisture from affecting the connection.
Prepare your electrical cable: you’ll need a 10-3 wire with a ground wire. Cut the cable to the appropriate length, making sure there’s enough slack for connections at both the breaker panel and the RV connection point.
Install the appropriate circuit breaker in your electrical panel. It should be rated to handle the current draw of your RV system. Attach the cable to the breaker’s terminal block, ensuring that the ground wire is securely connected to the panel’s ground bus bar.
At the connection box, strip the insulation from the cable ends to expose the copper conductors. Attach the live (black) wire to the terminal marked for hot, the neutral (white) wire to the terminal marked for neutral, and the ground (green or bare) wire to the ground terminal.
Secure the cable in the box and ensure all connections are tight. Test the setup by switching on the breaker and using a voltage tester to verify correct power flow at the connection point.
Finally, mount the power connection box near your RV’s power inlet and secure the cable. Seal any openings to prevent water from entering. Once everything is secure, power up the system and test the connection with your RV’s electrical system to ensure everything is functioning properly.
Troubleshooting Common Issues with 30-Amp RV Power Connections
If you’re experiencing issues with your 30-amp RV power connection, start by inspecting the power cord for visible damage. A frayed or worn-out cord can cause inconsistent electrical flow. Ensure the plug is securely inserted into the source and there are no loose connections.
- Overloaded Circuit: If appliances in your RV are not getting power, check if the circuit is overloaded. Turn off unnecessary devices and reset the breaker to see if power returns.
- Tripped Breaker: A tripped breaker is a common cause of power loss. Verify that the breaker is not in the off position. If it is, flip it back, and test the connection again.
- Grounding Issues: An improperly grounded source can lead to power interruptions or surges. Inspect the ground connection at the source and ensure it is securely connected.
- Burnt or Corroded Contacts: Inspect the contacts at both the power source and the RV. Corrosion or burn marks can prevent proper electrical flow. Clean or replace the damaged parts as needed.
- Loose Connections: Check all connectors for tightness. Loose or poorly connected terminals can cause arcing or intermittent power supply.
To ensure safe operation, always use a surge protector to prevent damage from unexpected voltage spikes. Regular maintenance and inspections can help avoid most issues related to power delivery to your RV.
